Главная Каталог продукции Toolunited 13 401-01 - Converter, rotationally symmetric AB001-H100-B16-050

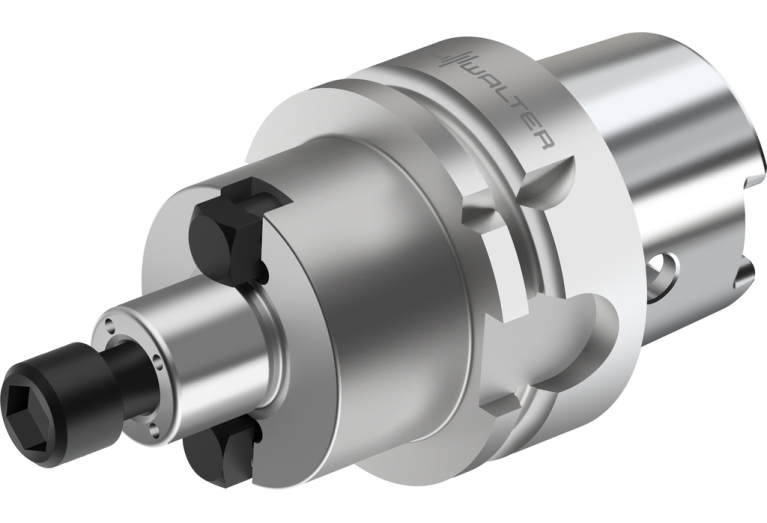

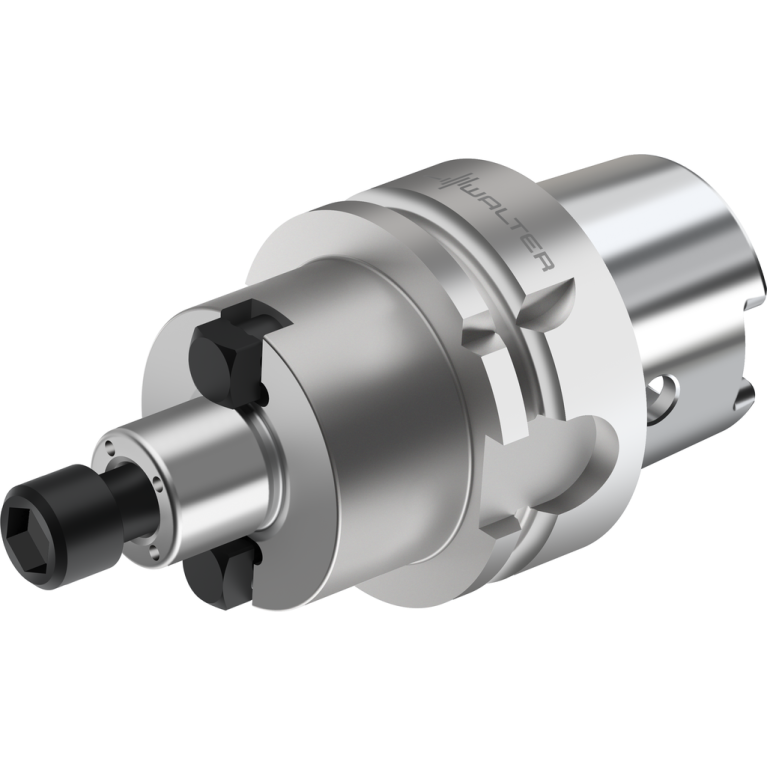

AB001-H100-B16-050

AB001-H100-B16-050 AB001-H100-B16-050 AB001-H100-B16-050 AB001-H100-B16-050

AB001-H100-B16-050

Walter
Артикул: 8651382
В наличии
В корзину
Описание
Характеристики

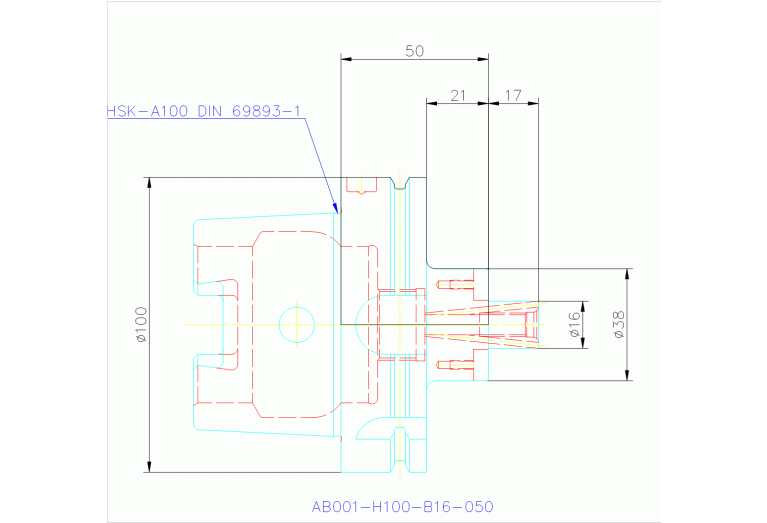

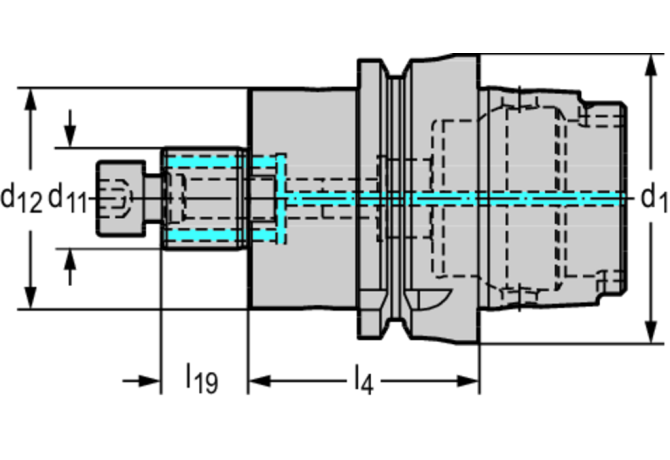

BD Body diameter
38 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
CZCWS Size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2024
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
DIN 69893-1 A shell mill arbor AB001-H
ID Technical product number
8651382
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
21 mm
LF Functional length
50 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01 ISO
FDA12G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA01601210
LOC-02 ISO
FDA22G1600****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA01602210
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
1000
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
67 mm
LS Shank length
17 mm
LSCX Clamping length maximum
17 mm
Name Identifying order number
AB001-H100-B16-050
OAL Overall length
117 mm
Rotation Rotation indicator
1 - rotating tool
RPMX Rotational speed maximum
30000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
2.2 kg
