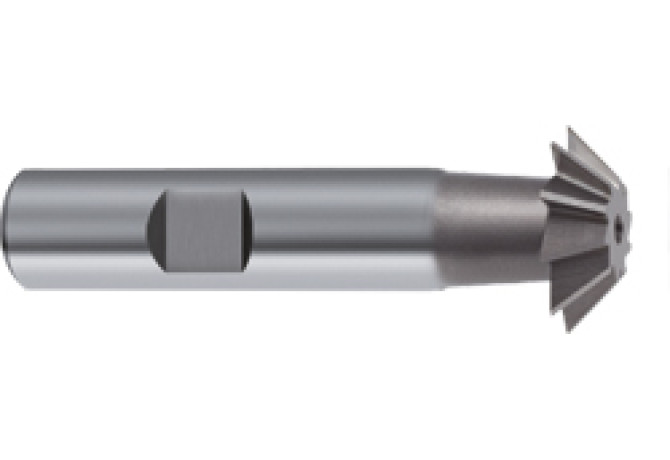

Главная Каталог продукции Toolunited 13 303-03 - Angular end mill (V-groove) 3576 32.000

3576 32.000

Артикул: 9035760320000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

AZ Plunge depth maximum

2.2 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Chip removal class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

32 mm

Delivery state valid from

1/18/2024

DIN

ZYL01601005

DN Neck diameter

10 mm

F71 Number of corner designs

FamilyProducts

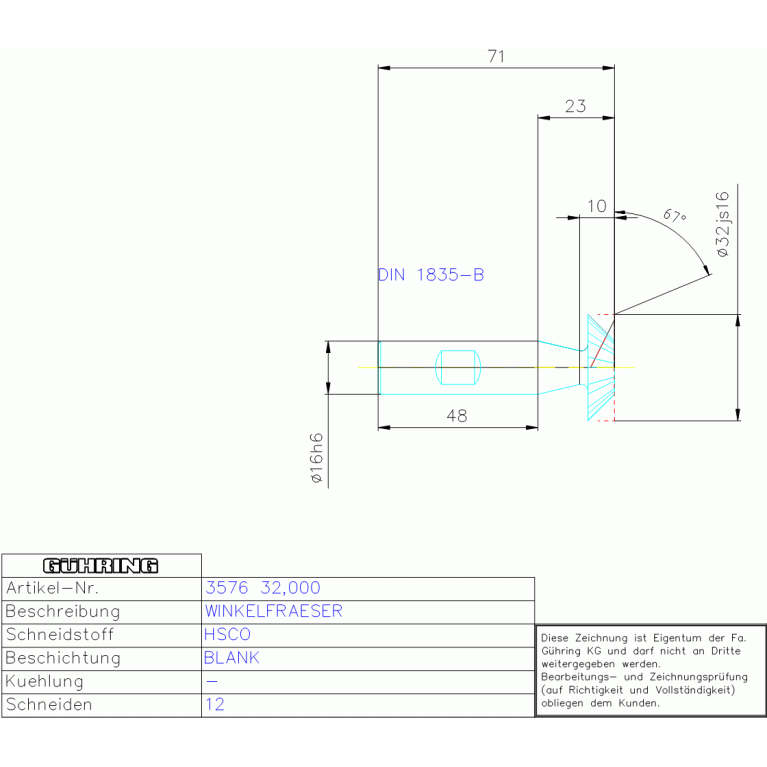

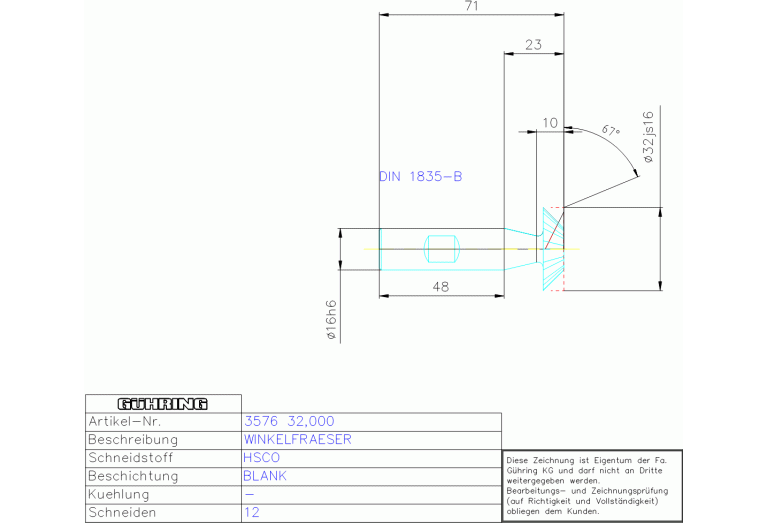

HSCO WINKELFRAESER 32,00 DIN1833-D RH 45

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9035760320000

Interface codes

J6 /

ISYC Subclass

303-03 - Angular end mill (V-groove)

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR Protruding length

23 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3576 32.000

OAL Overall length

71 mm

RMPX Ramping angle maximum

12.41 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN1833

Working process

FNU - Groove milling

WT Weight of item

0.128 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
