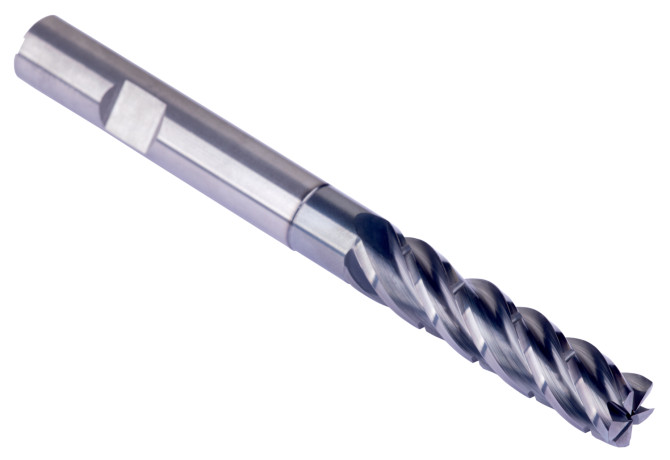

Главная Каталог продукции Toolunited 13 303-01 - Non-centre cutting end mill S773HB10.0

S773HB10.0

Артикул: 8030398

В наличии

В корзину

Описание

Характеристики

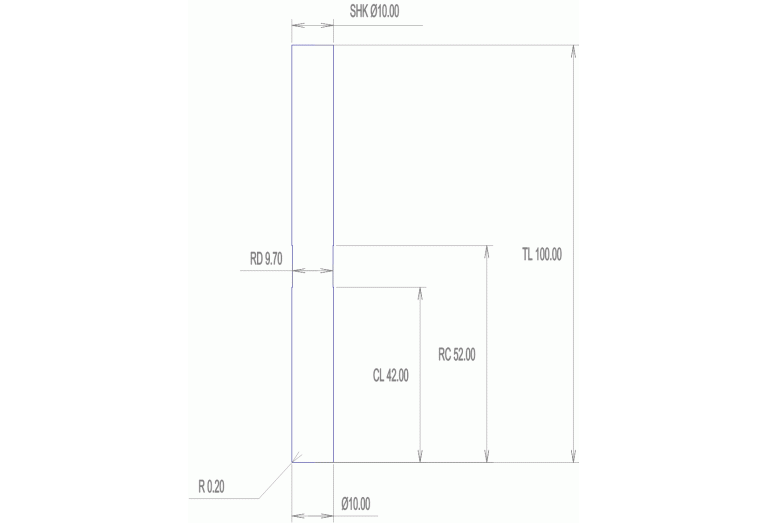

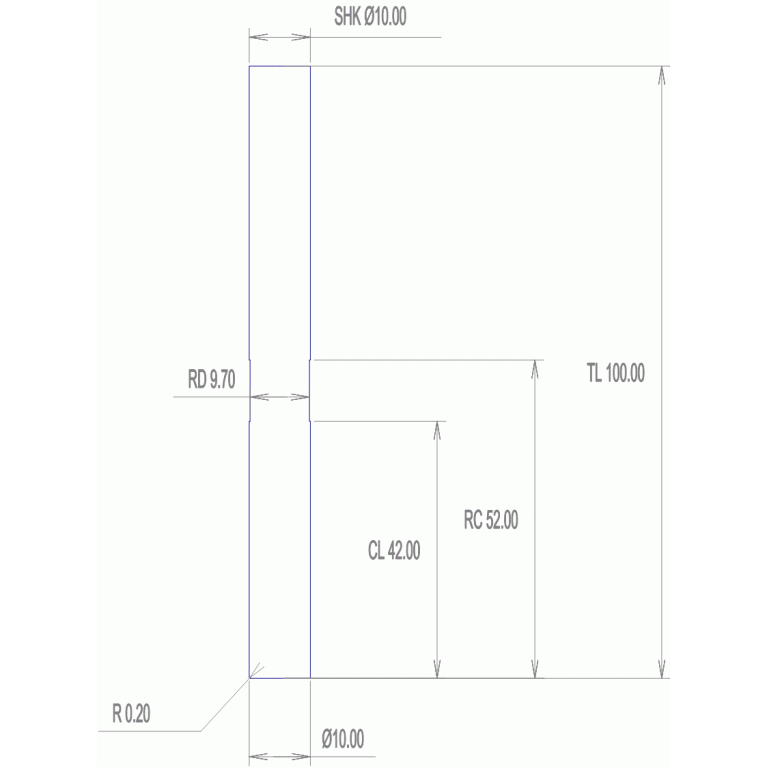

APMX Depth of cut maximum

42 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

AlCrN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

10 mm

Delivery state valid from

6/1/2024

DIN

ZYL01001015

DN Neck diameter

9.7 mm

F71 Number of corner designs

FamilyProducts

5-Flute Solid Carbide End Mill, Chip Dividers, Through Coolant, Long Series

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

10 Degree

GRDMFG Grade manufacturers designation

AlCrN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

8030398

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01001015

Materials

P,M,K,S

Name Identifying order number

S773HB10.0

OAL Overall length

100 mm

RE Corner radius

0.2 mm

STDNO Standard

DORMER

Working process

FEC - Square shoulder milling,FNB - Slotting,FZI - Circular milling

WT Weight of item

0.097 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
