Главная Каталог продукции Toolunited 13 303-01 - Non-centre cutting end mill S6148.0

S6148.0

Артикул: 8030301

В наличии

В корзину

Описание

Характеристики

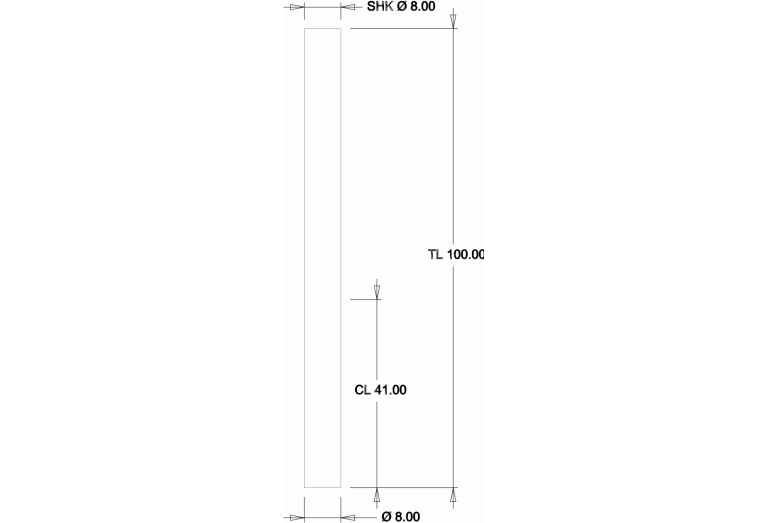

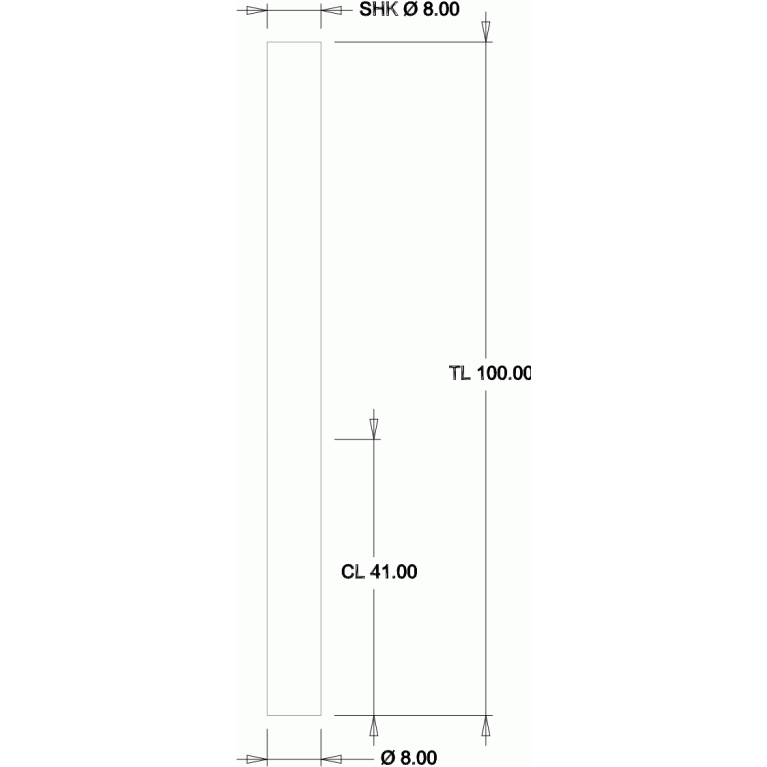

APMX Depth of cut maximum

41 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

Delivery state valid from

6/1/2024

DIN

ZYL00800105

F71 Number of corner designs

FamilyProducts

3-Flute Solid Carbide End Mill, Extra Long Series

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

13 Degree

GRDMFG Grade manufacturers designation

Bright

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

8030301

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

Materials

Name Identifying order number

S6148.0

OAL Overall length

100 mm

STDNO Standard

DORMER

Working process

FEC - Square shoulder milling

WT Weight of item

0.067 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
