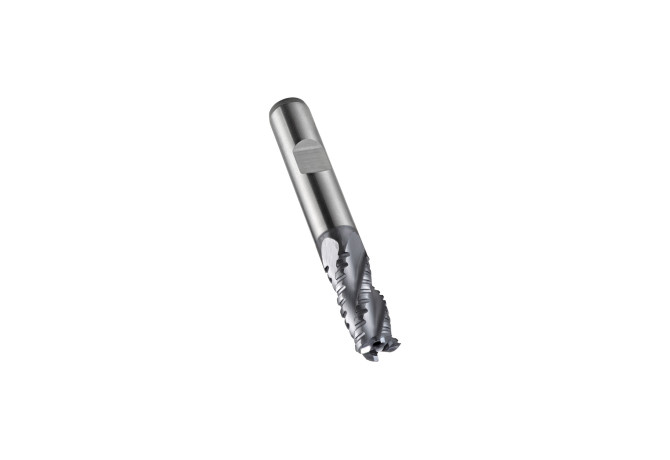

Главная Каталог продукции Toolunited 13 303-01 - Non-centre cutting end mill C41314.0

C41314.0

Артикул: 5984499

В наличии

В корзину

Описание

Характеристики

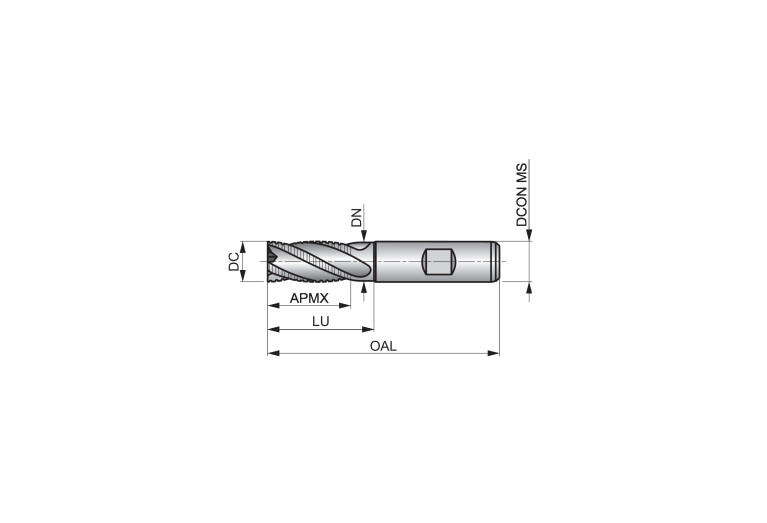

APMX Depth of cut maximum

26 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiCN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

14 mm

Delivery state valid from

6/1/2024

DIN

ZYL01201005

DN Neck diameter

11.5 mm

F71 Number of corner designs

FamilyProducts

4-Flute HSS-E Roughing End Mill, TiCN Coating

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

12 Degree

GRDMFG Grade manufacturers designation

TiCN

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

5984499

Interface codes

J6 /

ISYC Subclass

303-01 - Non-centre cutting end mill

LN Neck length

37 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

Materials

P,M,K,N,S

Name Identifying order number

C41314.0

OAL Overall length

83 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN844

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling

WT Weight of item

0.074 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
