Главная Каталог продукции Toolunited 13 303-01 - Non-centre cutting end mill 8550027

8550027

Артикул: 8550027

В наличии

В корзину

Описание

Характеристики

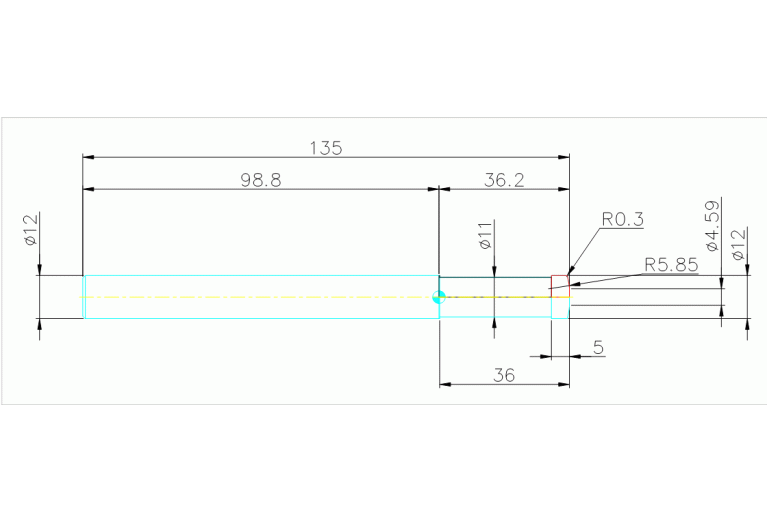

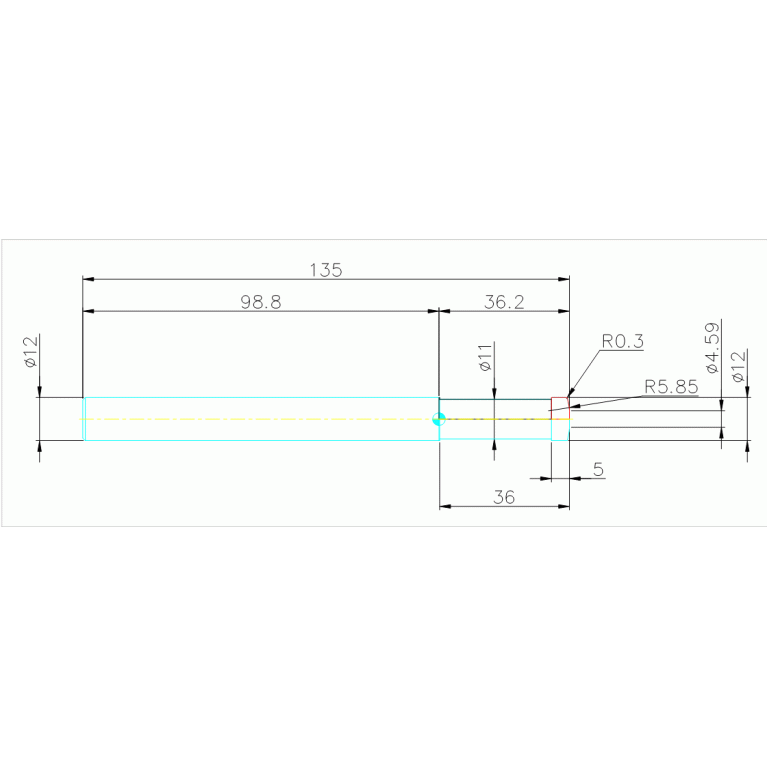

APMX Depth of cut maximum

5 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.563 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2024

DIN

ZYL01200105

DN Neck diameter

11 mm

FamilyProducts

OSG AE-HFE-H D 12XR0.8

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMP Rake angle axial

0 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-01 - Non-centre cutting end mill

KCH Corner chamfer angle

10 Degree

LN Neck length

36 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

36.2 mm

LS Shank length

99 mm

LU Usable length

36 mm

Materials

P,K,S,H

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

8550027

OAL Overall length

135 mm

RE Corner radius

0.3 mm

RE2 Front radius

5.85 mm

RMPX Ramping angle maximum

3 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

FFO - Die milling,FPL - Face milling

WT Weight of item

0.216 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
