Главная Каталог продукции Toolunited 13 303-01 - Non-centre cutting end mill 48364199

48364199

Артикул: 48364199

В наличии

В корзину

Описание

Характеристики

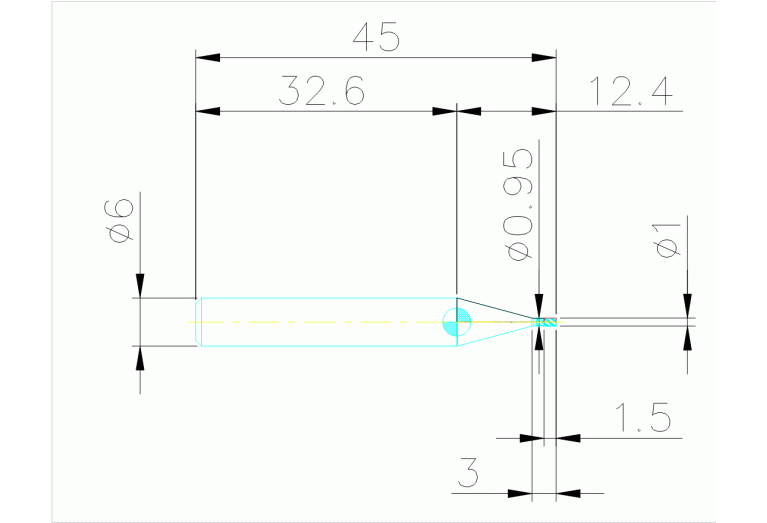

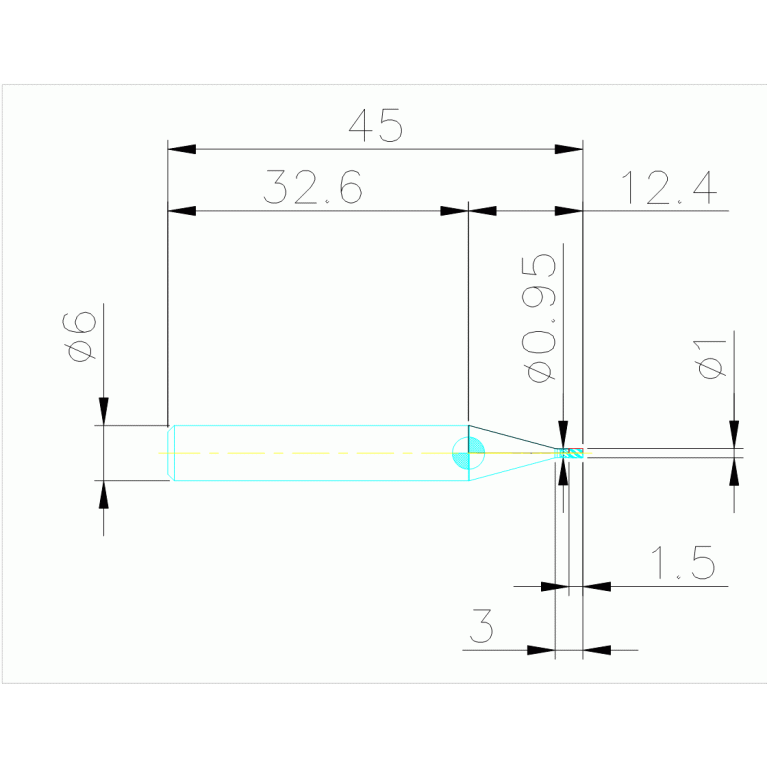

APMX Depth of cut maximum

1.5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/1/2024

DIN

ZYL00600105

DN Neck diameter

0.95 mm

FamilyProducts

OSG AE-MSS-H D 1X3

FHA Flute helix angle

43 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

0 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

303-01 - Non-centre cutting end mill

LN Neck length

2.778 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

12.4 mm

LS Shank length

32.6 mm

LU Usable length

3 mm

Materials

P,K,S,H

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

48364199

OAL Overall length

45 mm

RMPX Ramping angle maximum

2 Degree

SN B101 Length of the non-cutting cylindrical neck section

1.278 mm

SN B102 Length to the transition radius beginning

2.778 mm

SN E101 1. neck angle

0 Degree

SN E102 Starting angle Neck radius

0 Degree

SN E103 2. neck angle

15 Degree

SN G102 Transition radius

1 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FPL - Face milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
