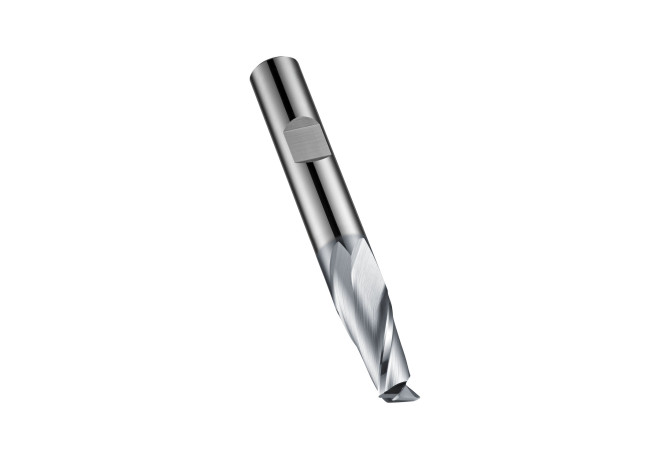

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill S812HB18.0

S812HB18.0

Артикул: 5983559

В наличии

В корзину

Описание

Характеристики

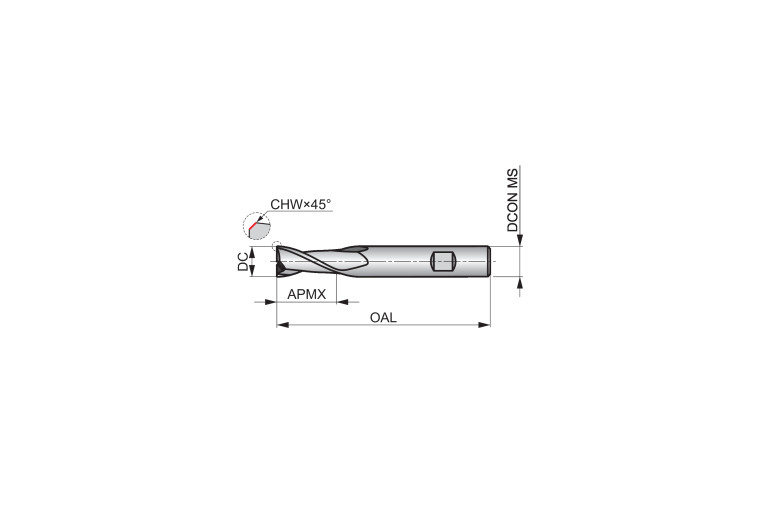

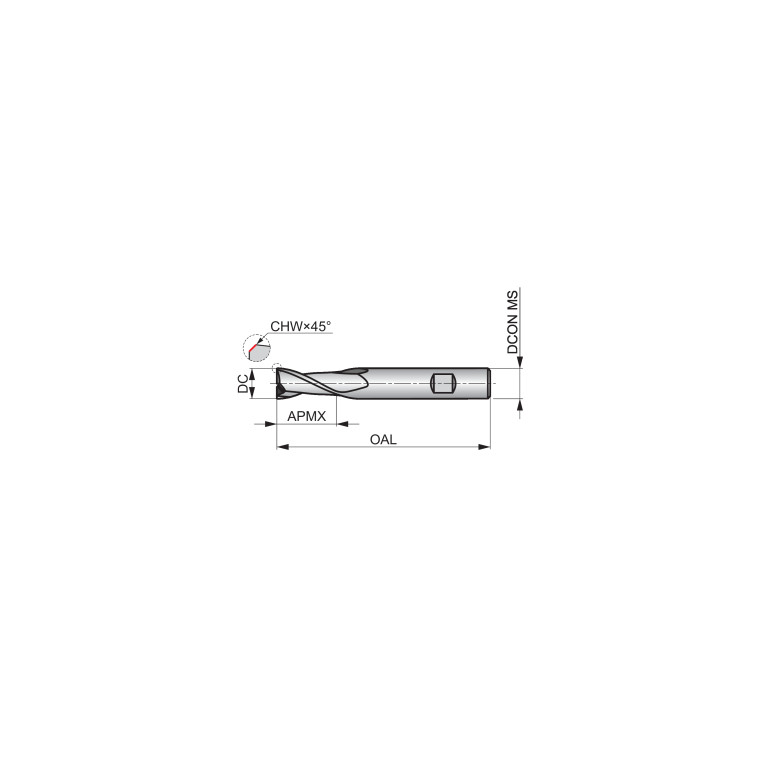

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.2 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

18 mm

Delivery state valid from

6/1/2024

DIN

ZYL01801005

F71 Number of corner designs

FamilyProducts

2-Flute Solid Carbide Slot End Mill, DIN 6535 HB Shank

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

9 Degree

GRDMFG Grade manufacturers designation

AlCrN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

5983559

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01801005

Materials

P,M,K,N,S

Name Identifying order number

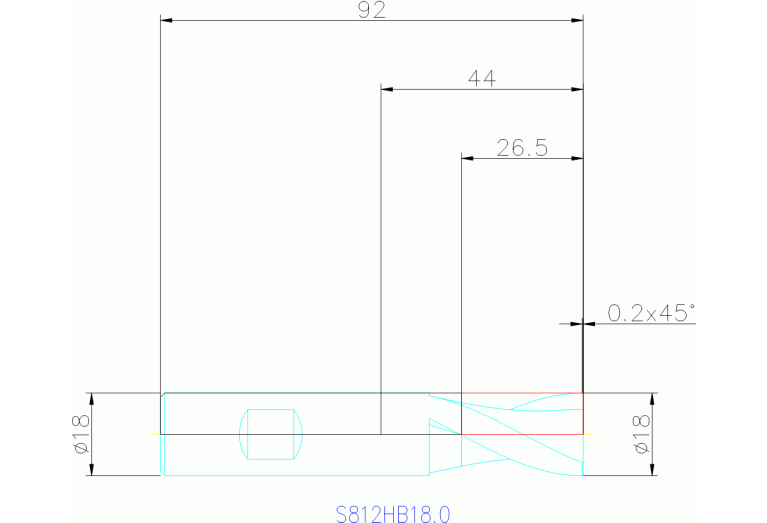

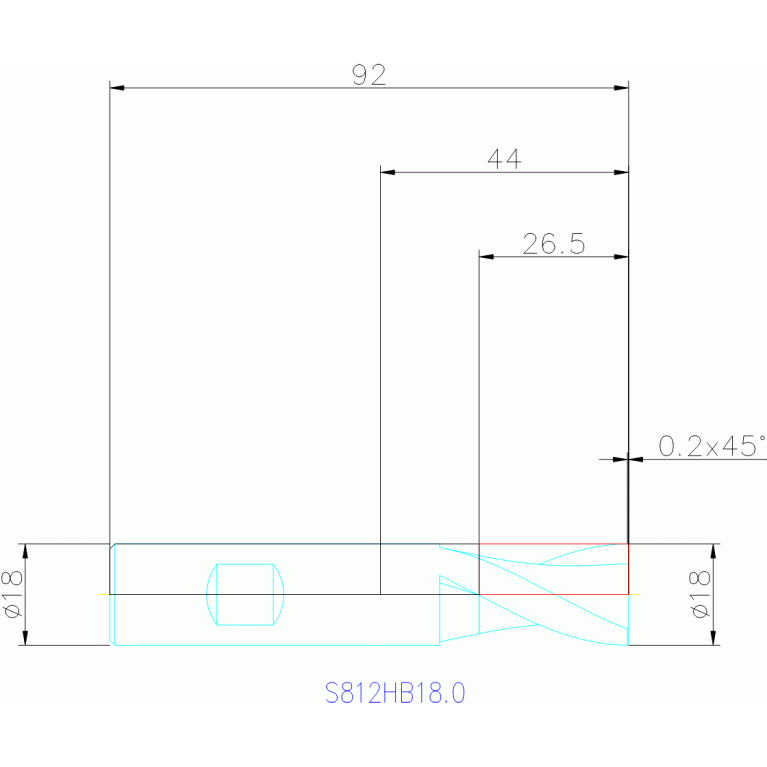

S812HB18.0

OAL Overall length

92 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN6527

TCDCONMS ISO-tolerance class shank diameter

Working process

FNB - Slotting,FNU - Groove milling

WT Weight of item

0.287 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
