Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill S722HB14.0

S722HB14.0

Артикул: 8030358

В наличии

В корзину

Описание

Характеристики

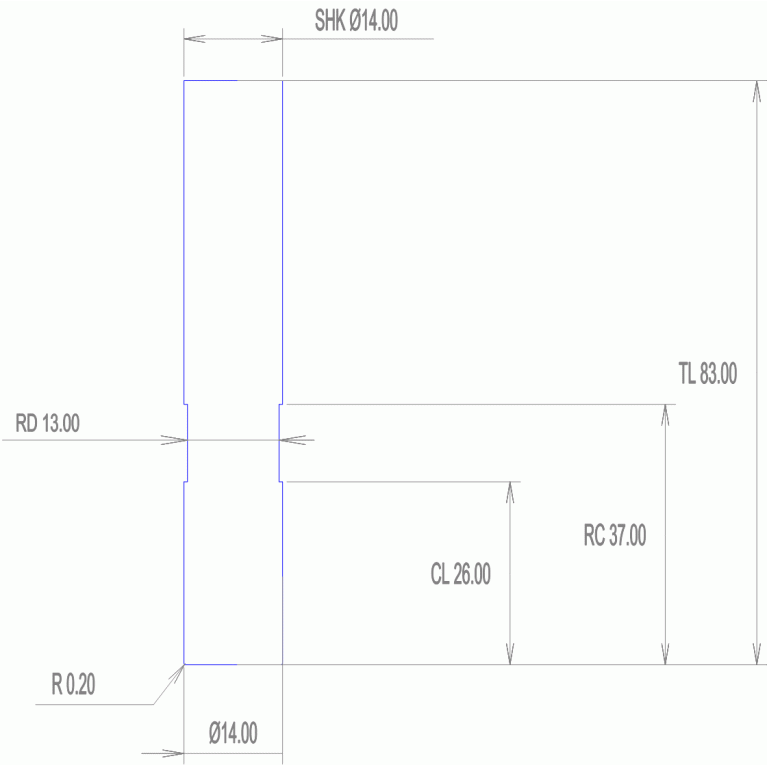

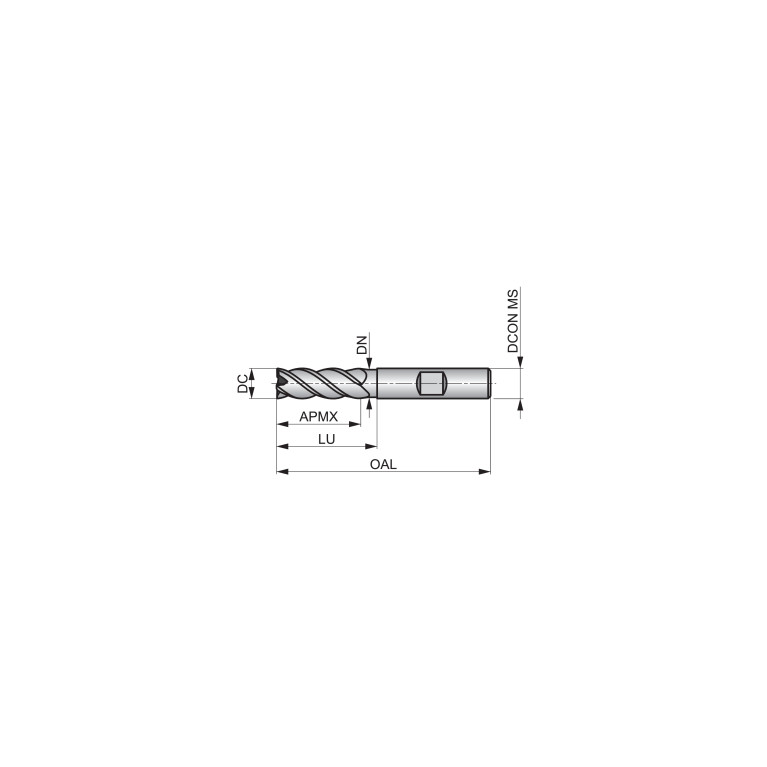

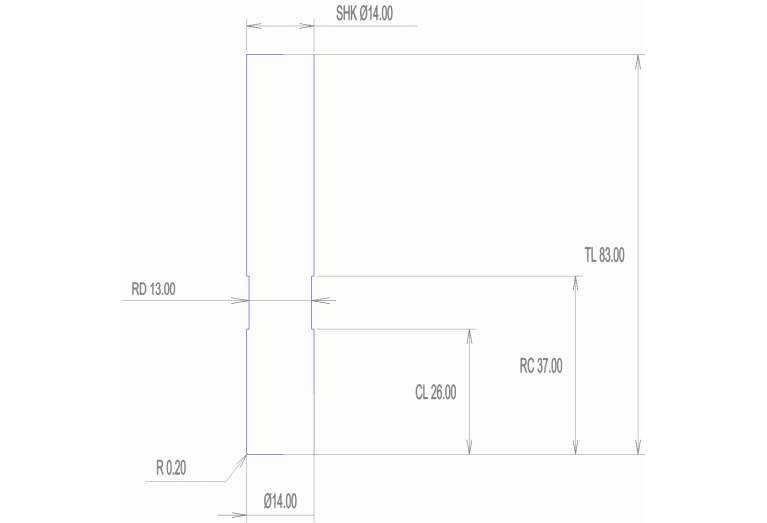

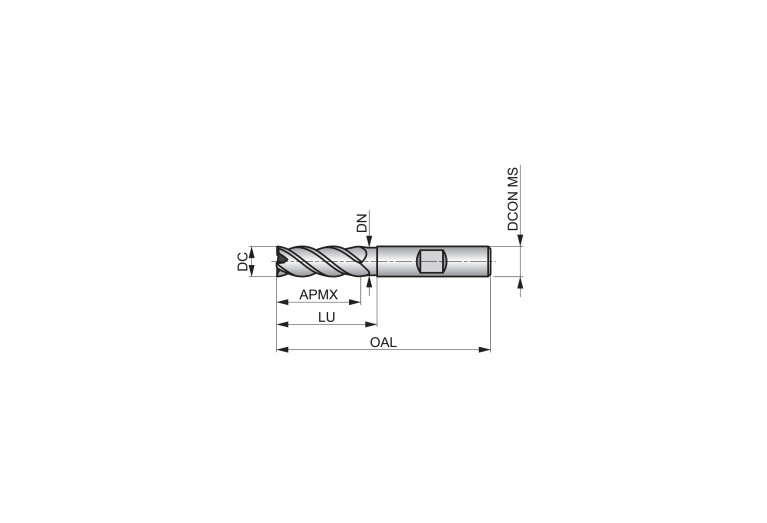

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlCrN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

14 mm

Delivery state valid from

6/1/2024

DIN

ZYL01401005

DN Neck diameter

13 mm

F71 Number of corner designs

FamilyProducts

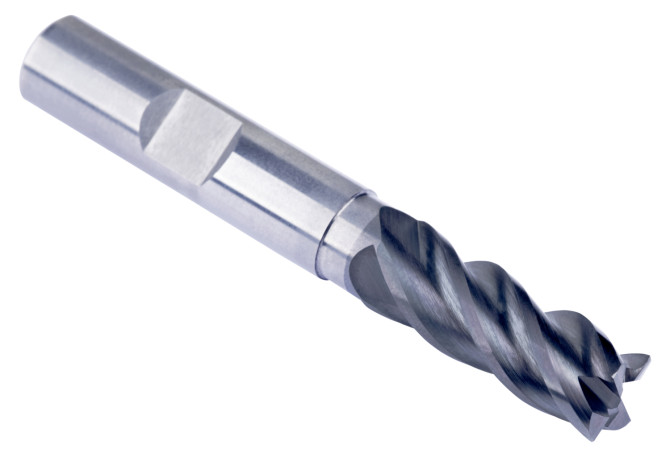

4-Flute Solid Carbide End Mill

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

7 Degree

GRDMFG Grade manufacturers designation

AlCrN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

8030358

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401005

Materials

P,M,K,S

Name Identifying order number

S722HB14.0

OAL Overall length

83 mm

RE Corner radius

0.2 mm

STDNO Standard

DORMER

Working process

FEC - Square shoulder milling

WT Weight of item

0.164 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
