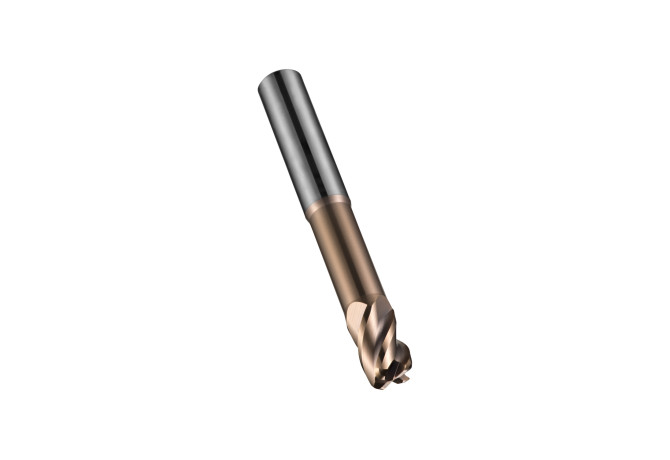

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill S5243.0XR0.3

S5243.0XR0.3

Артикул: 6706649

В наличии

В корзину

Описание

Характеристики

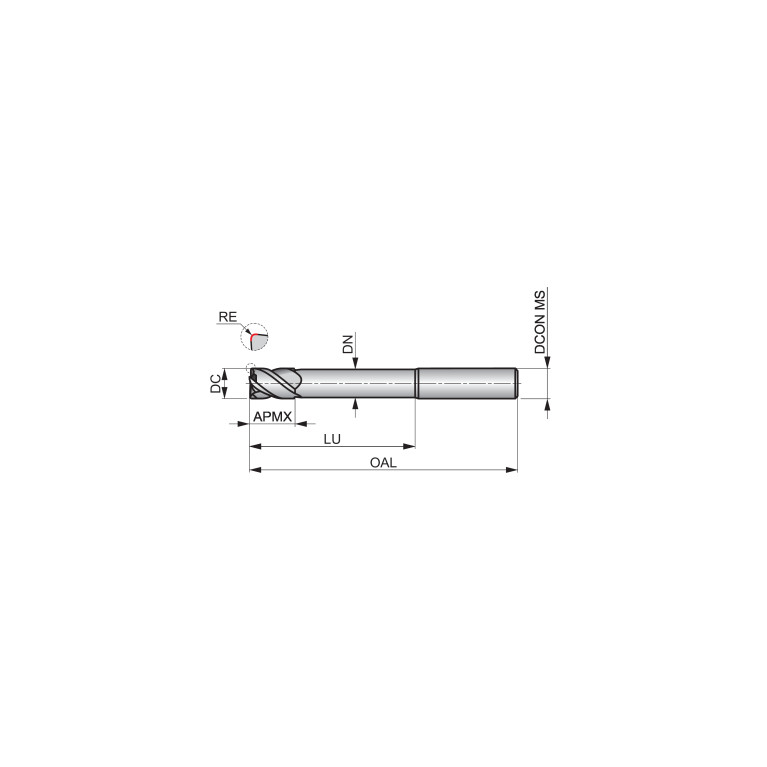

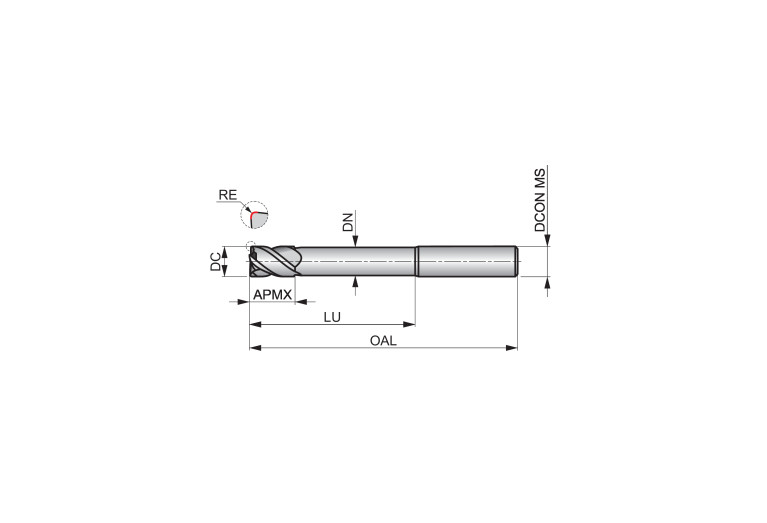

APMX Depth of cut maximum

5 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiSiN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

3 mm

Delivery state valid from

6/1/2024

DIN

ZYL00600105

DN Neck diameter

2.8 mm

F71 Number of corner designs

FamilyProducts

4-Flute Solid Carbide Corner Radius End Mill, Long Reach

FHA Flute helix angle

40 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

-6 Degree

GRDMFG Grade manufacturers designation

TiSiN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

6706649

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LN Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

Materials

Name Identifying order number

S5243.0XR0.3

OAL Overall length

75 mm

RE Corner radius

0.3 mm

STDNO Standard

DORMER

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FNB - Slotting,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.026 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
