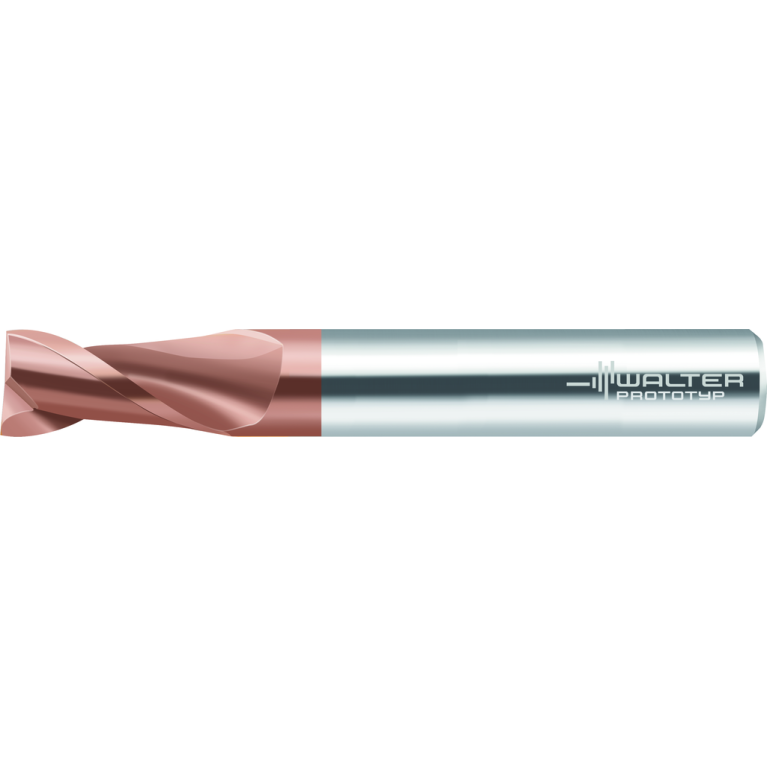

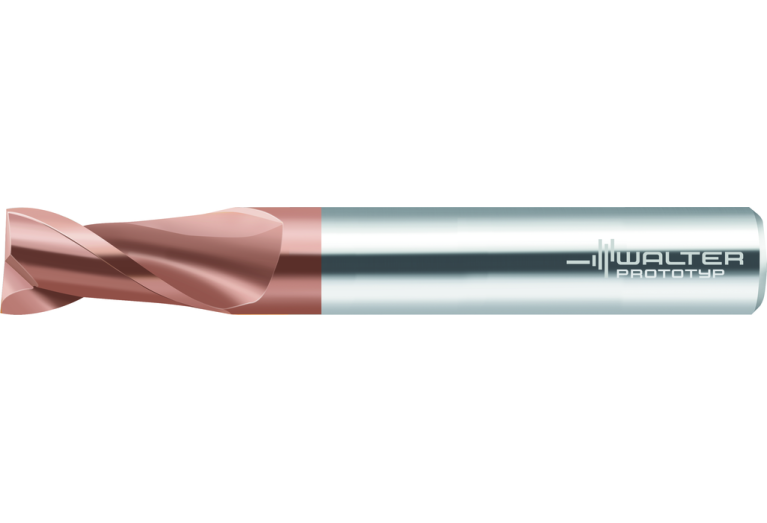

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill ME232.3.18A2D-WJ30ED

ME232.3.18A2D-WJ30ED

ME232.3.18A2D-WJ30ED ME232.3.18A2D-WJ30ED ME232.3.18A2D-WJ30ED

ME232.3.18A2D-WJ30ED

Walter
Артикул: 8507116
В наличии
В корзину
Описание
Характеристики

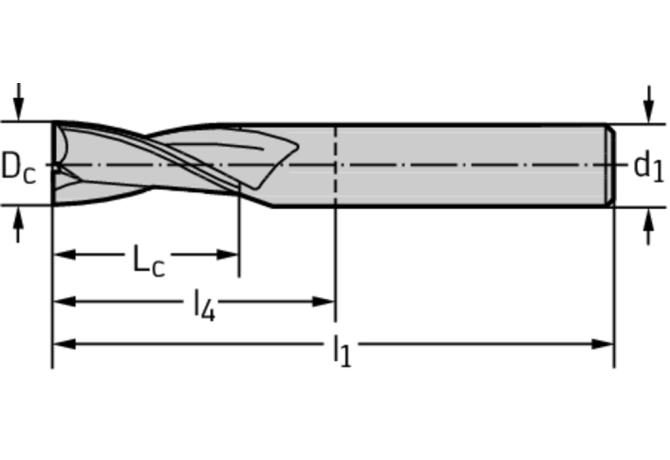

APMX Depth of cut maximum
12.7 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlCrSiN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
3.175 mm
Delivery state valid from
6/1/2024
DIN
ZYL02500125
DN Neck diameter
3.225 mm
F71 Number of corner designs
1
FamilyProducts
Solid carbide shoulder/slot mills ME232
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
8 Degree
GAMP Rake angle axial
4 Degree
GRDMFG Grade manufacturers designation
WJ30ED
HAND Cutting direction
R - Right
ID Technical product number
8507116
Interface codes
J6 / J61
ISO
ZYL01R2500h$06
ISYC Subclass
303-02 - Centre cutting end mill
LF Functional length
63.5 mm
LH Head length
27.5 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
6.35 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01R2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500125
LPR Protruding length
27.5 mm
LS Shank length
36 mm
Name Identifying order number
ME232.3.18A2D-WJ30ED
OAL Overall length
63.5 mm
RMPX Ramping angle maximum
1 Degree
RPMX Rotational speed maximum
303876 1/min
STDNO Standard
STANDARD
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.023 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
