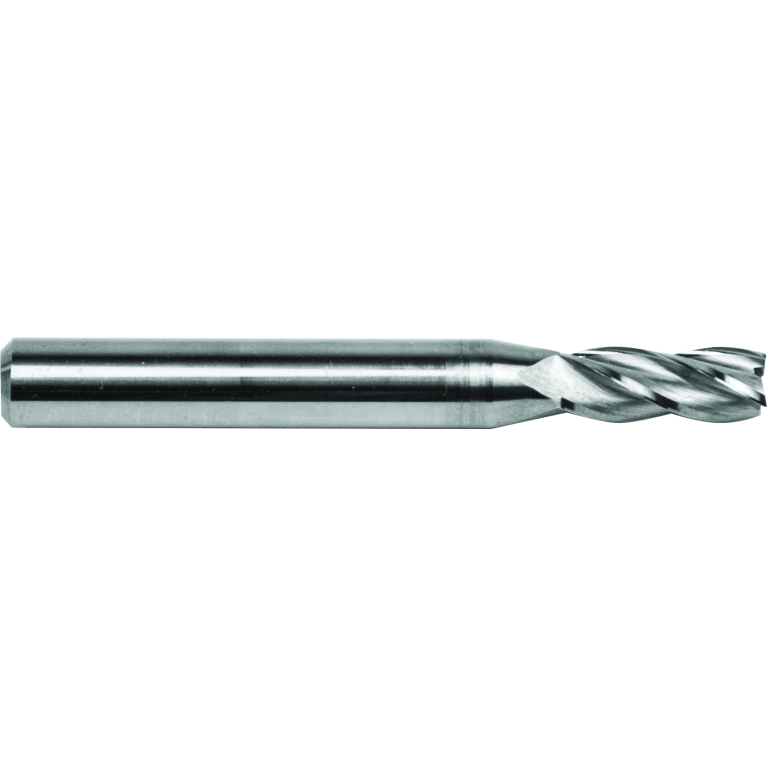

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill ALP-4E-D4.0 YK40F

ALP-4E-D4.0 YK40F

Артикул: ALP-4E-D4.0 YK40F

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

unbeschichtet

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.15 kg

DIN

ZYL00600105

F71 Number of corner designs

FamilyProducts

End mill

FHA Flute helix angle

38 Degree

GRDMFG Grade manufacturers designation

YK40F

HAND Cutting direction

R - Right

ID Identifying order number

ALP-4E-D4.0 YK40F

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LF Functional length

50 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

OAL Overall length

50 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
