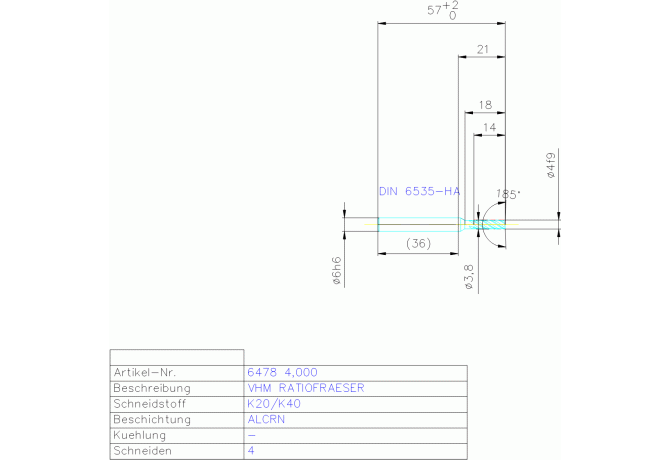

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill 6478 4.000

6478 4.000

Артикул: 9064780040000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

14 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.08 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00600105

DN Neck diameter

3.8 mm

F71 Number of corner designs

FamilyProducts

VHM ALCRN FRA 4S RF1 SHARP WN 38/40° HA

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

16.1 mm

GAMF Rake angle radial

38 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

9064780040000

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

57 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

21 mm

LS Shank length

36 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

6478 4.000

OAL Overall length

57 mm

Working process

FEC - Square shoulder milling

WT Weight of item

0.022 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
