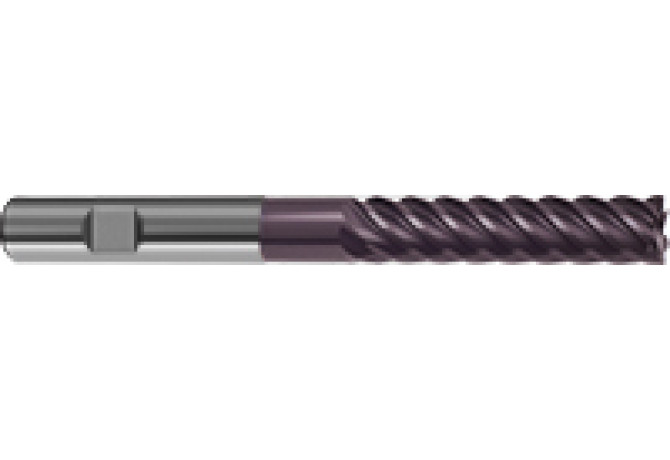

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill 5529 16.000

5529 16.000

Артикул: 5529 16.000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

65 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.15 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01601005

F71 Number of corner designs

FamilyProducts

VHM SL-FIRE FRA-SH WN LANG R NH 45 ZL HB

FHA Flute helix angle

45 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

50 mm

GAMF Rake angle radial

45 Degree

GAMP Rake angle axial

7 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

126 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR Protruding length

102 mm

LS Shank length

48 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

5529 16.000

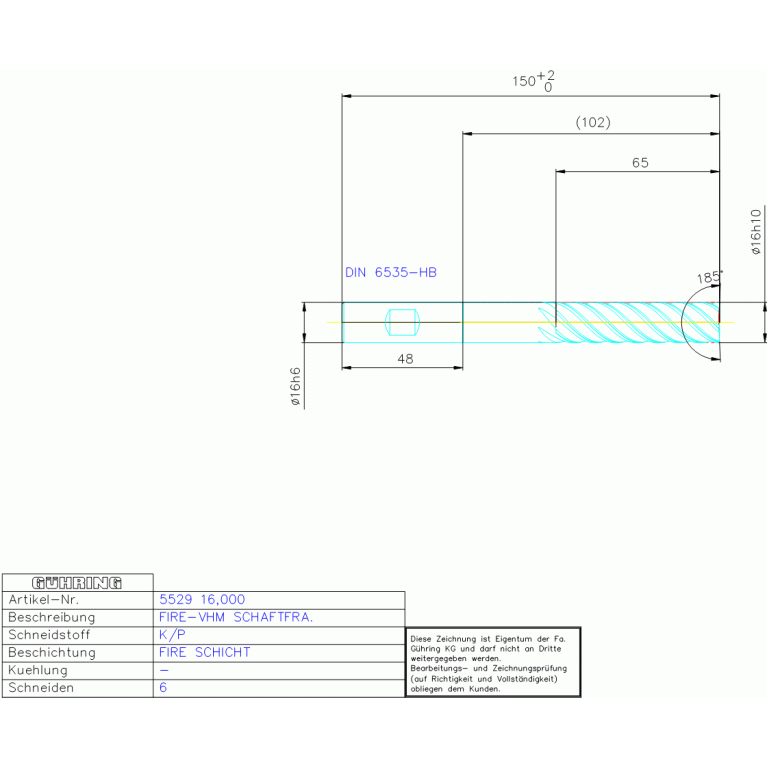

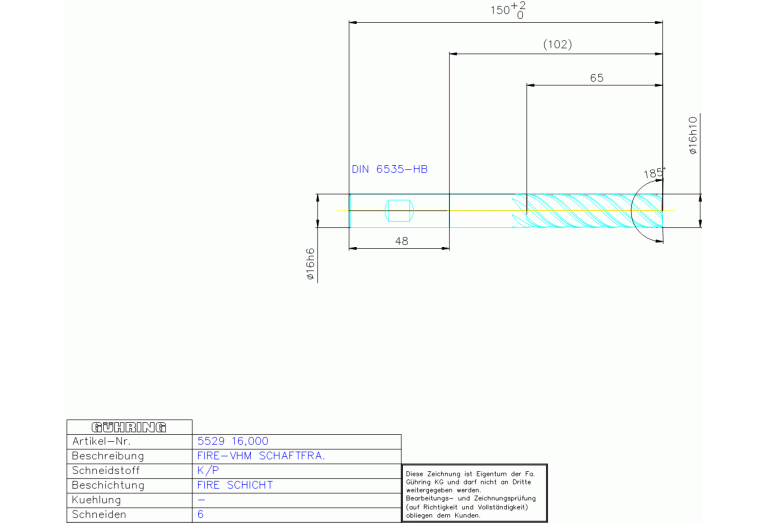

OAL Overall length

150 mm

Working process

FEC - Square shoulder milling

WT Weight of item

0.438 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
