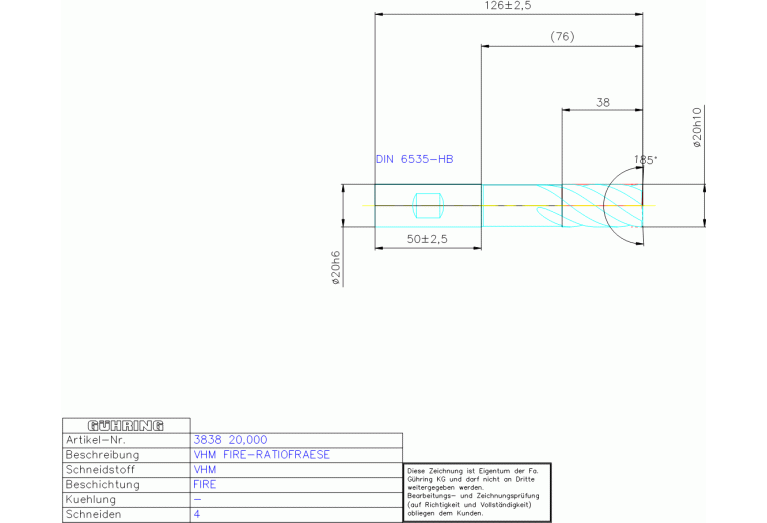

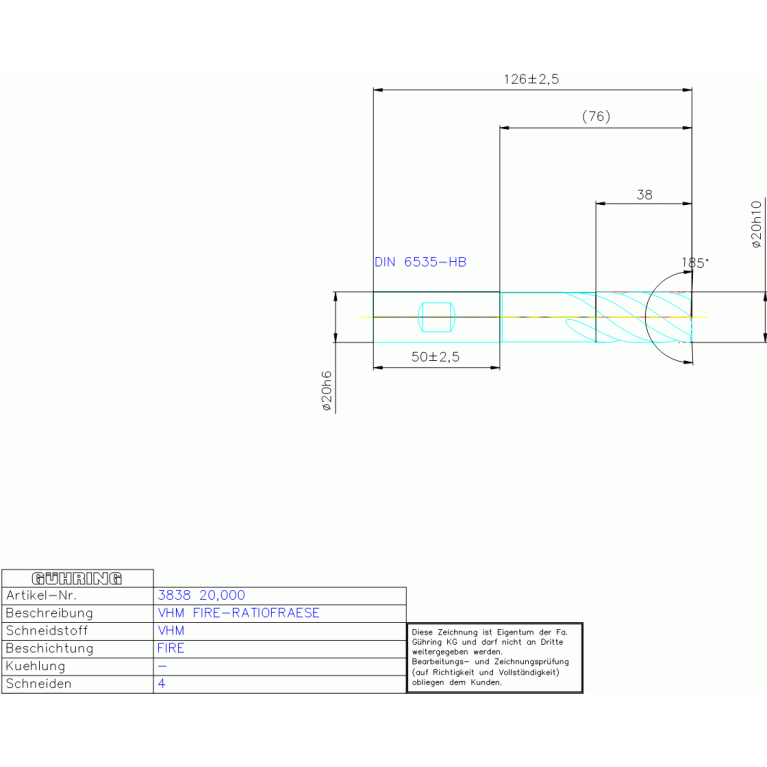

Главная Каталог продукции Toolunited 13 303-02 - Centre cutting end mill 3838 20.000

3838 20.000

Артикул: 3838 20.000

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

38 mm

BMC Body material code

H - Solid carbide

CHW Corner chamfer width

0.45 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCONMSLD Shank diameter lower limit

-0.013 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL02001005

DN Neck diameter

19.5 mm

F71 Number of corner designs

FamilyProducts

VHM FRA-SH RF100 U 35/38° WN-M FIRE HB

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

90 mm

GAMF Rake angle radial

35 Degree

GAMP Rake angle axial

4 Degree

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

KCH Corner chamfer angle

45 Degree

LF Functional length

101 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

76 mm

LS Shank length

50 mm

MILTTY Mill tool type ISO

H - Slotting end mill (one or more indexable insert pro cutting edge) 90°

Name Identifying order number

3838 20.000

OAL Overall length

126 mm

Working process

FEC - Square shoulder milling

WT Weight of item

0.516 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
