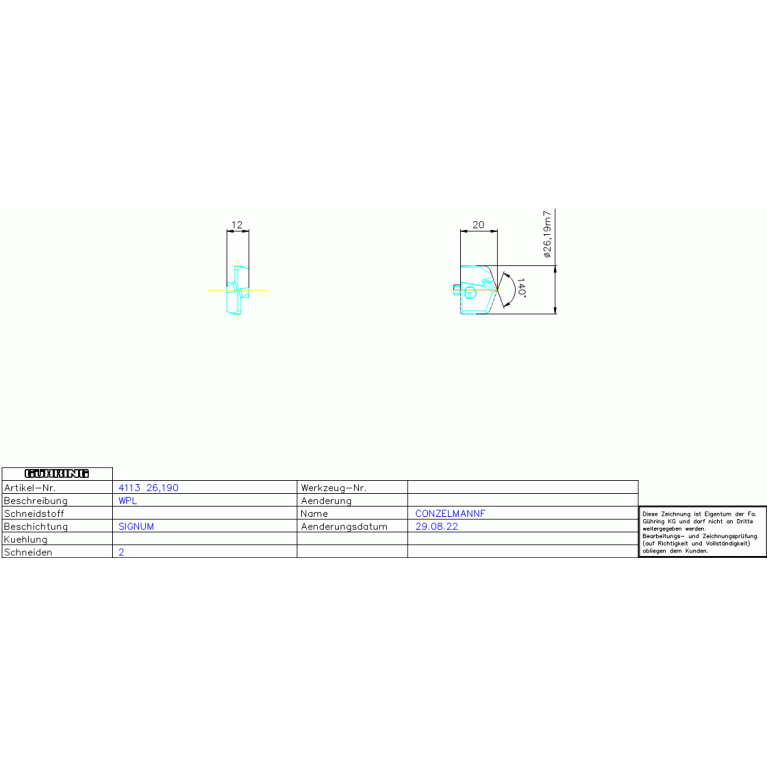

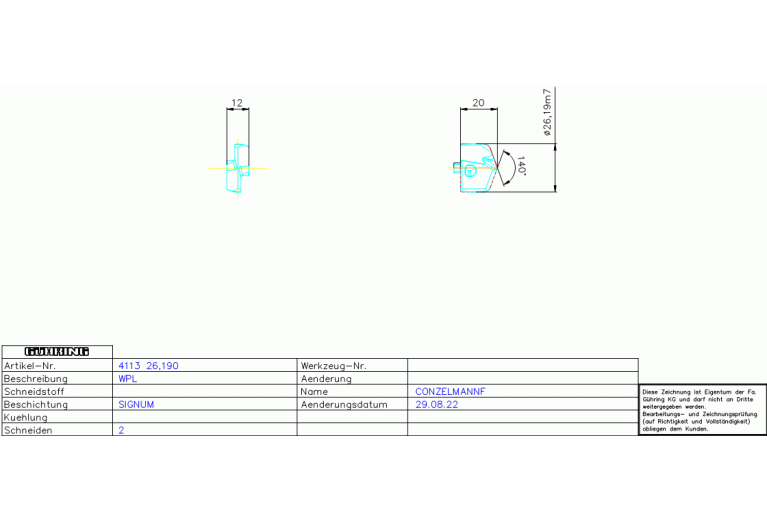

Главная Каталог продукции Toolunited 13 203-03 - Replaceable insert flatted with chip flute 4113 26.190

4113 26.190

Артикул: 9041130261900

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

SIGNUM-BESCHICHTET

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

26.19 mm

Delivery state valid from

1/18/2024

DIN

GG-HTW0260

FamilyProducts

WECHSELPLATTE

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9041130261900

Interface codes

J6 /

ISYC Subclass

203-03 - Replaceable insert flatted with chip flute

LF Functional length

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GG-HTW0260

LPR Protruding length

20 mm

Name Identifying order number

4113 26.190

NOF Flute count

OAL Overall length

23.6 mm

OALN

14 mm

PL Point length

6 mm

S1 Insert thickness total

12 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.078 kg
