Главная Каталог продукции Toolunited 13 203-03 - Replaceable insert flatted with chip flute 4113 14.000

4113 14.000

Артикул: 9041130140000

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

SIGNUM-BESCHICHTET

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

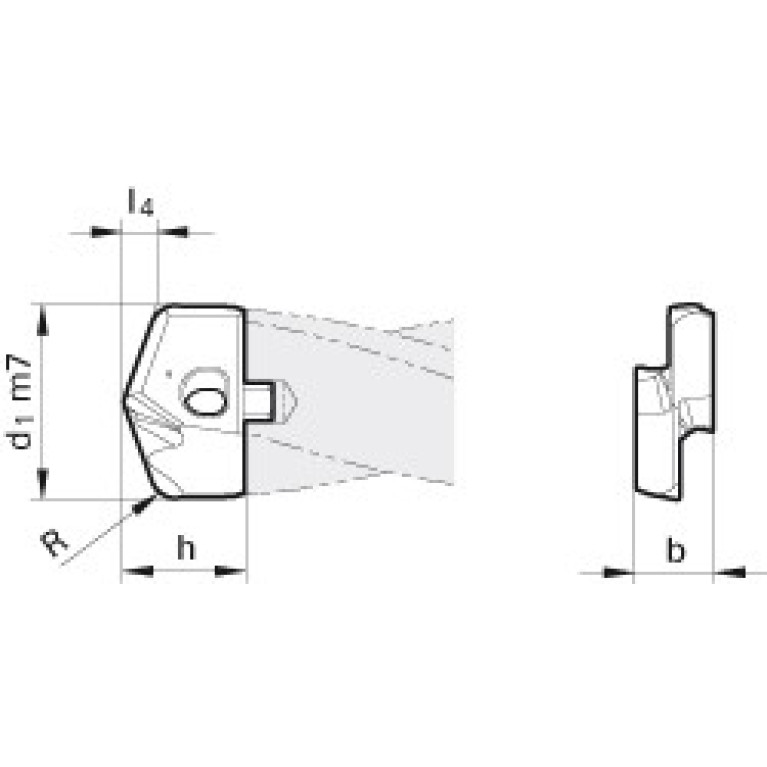

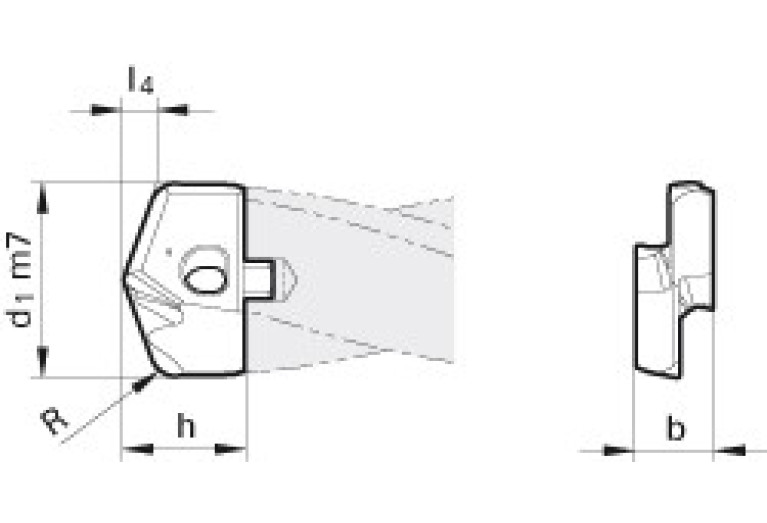

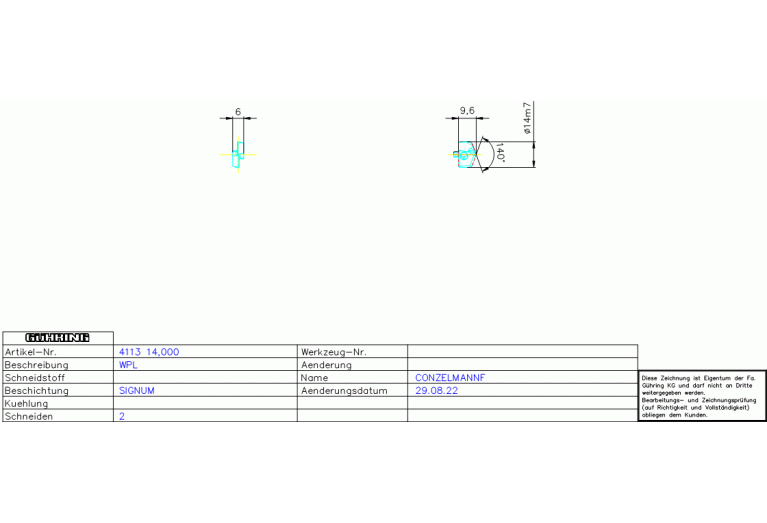

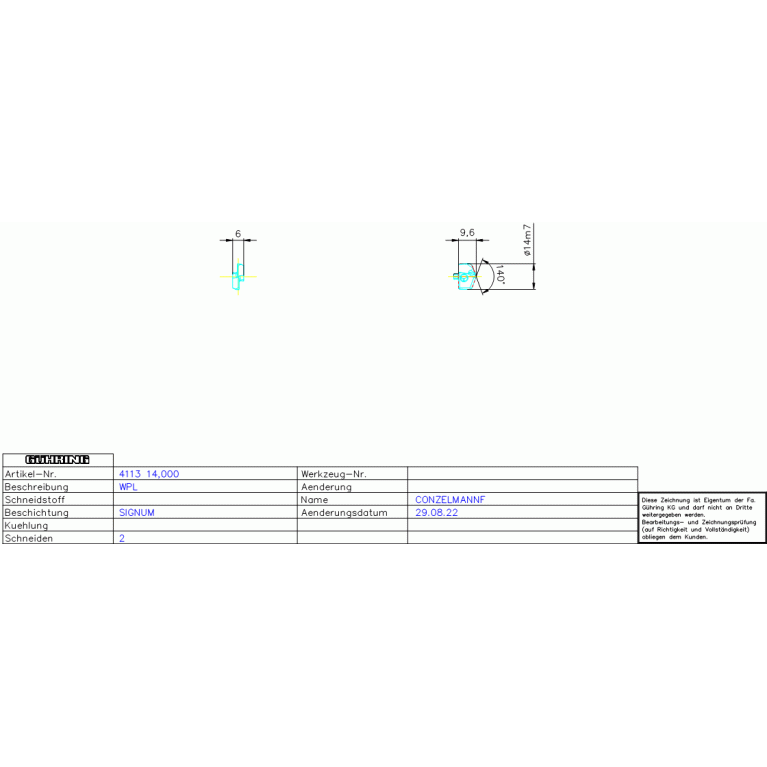

DC Cutting diameter

14 mm

Delivery state valid from

1/18/2024

DIN

GG-HTW0140

FamilyProducts

WECHSELPLATTE

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9041130140000

Interface codes

J6 /

ISYC Subclass

203-03 - Replaceable insert flatted with chip flute

LF Functional length

6.2 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GG-HTW0140

LPR Protruding length

9.6 mm

Name Identifying order number

4113 14.000

NOF Flute count

OAL Overall length

12.2 mm

OALN

6.2 mm

PL Point length

3.4 mm

S1 Insert thickness total

6 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.018 kg
