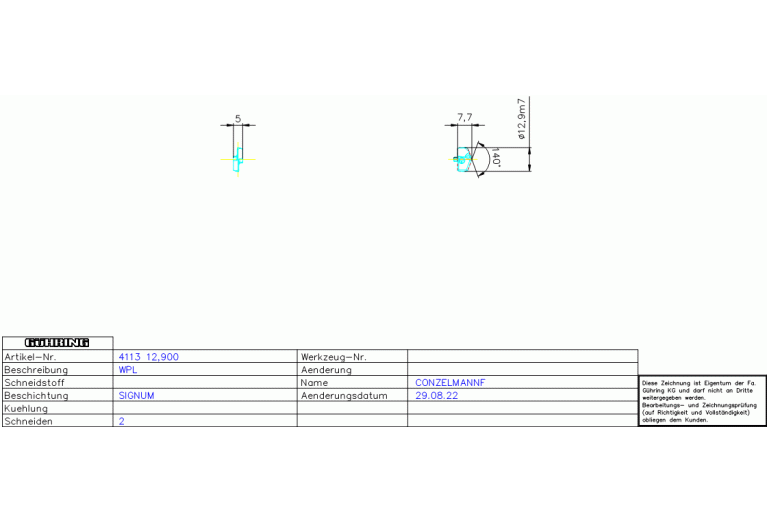

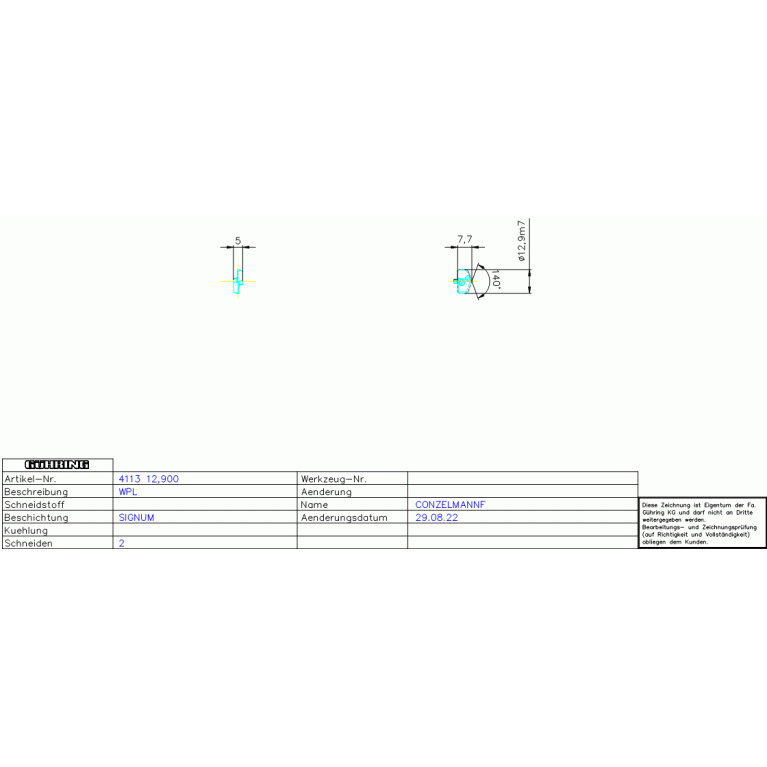

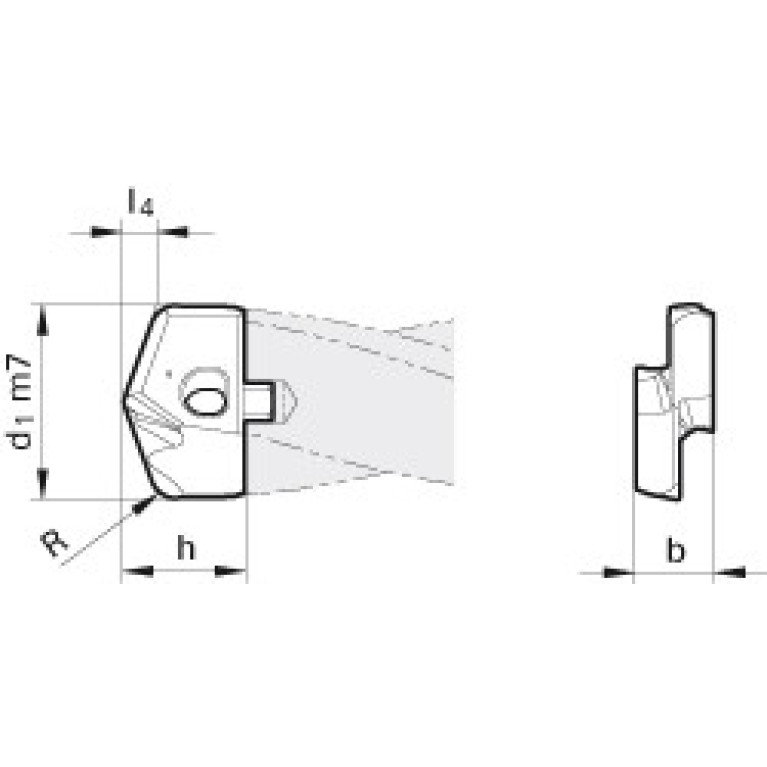

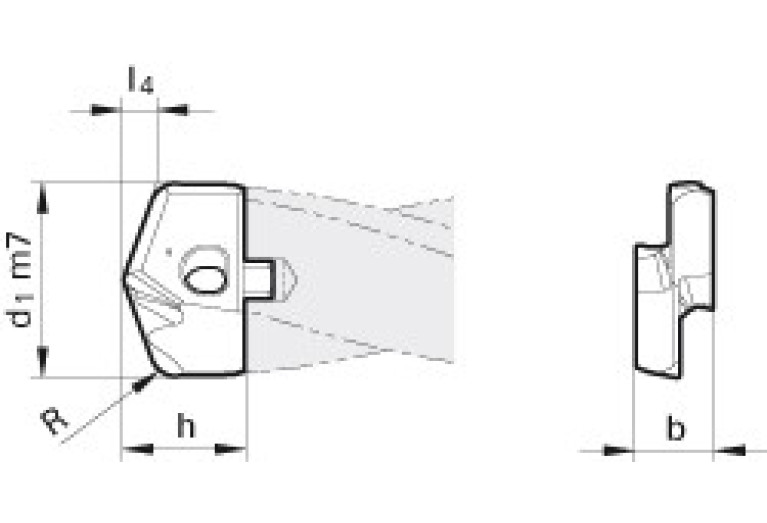

Главная Каталог продукции Toolunited 13 203-03 - Replaceable insert flatted with chip flute 4113 12.900

4113 12.900

Артикул: 9041130129000

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

SIGNUM-BESCHICHTET

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

12.9 mm

Delivery state valid from

1/18/2024

DIN

GG-HTW0125

FamilyProducts

WECHSELPLATTE

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

9041130129000

Interface codes

J6 /

ISYC Subclass

203-03 - Replaceable insert flatted with chip flute

LF Functional length

4.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GG-HTW0125

LPR Protruding length

7.7 mm

Name Identifying order number

4113 12.900

NOF Flute count

OAL Overall length

9.8 mm

OALN

4.7 mm

PL Point length

3 mm

S1 Insert thickness total

5 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0.014 kg
