Главная Каталог продукции Toolunited 13 302-05 - Stepped countersinking tool / tapered countersinking tool 150020 8

150020 8

Артикул: 150020 8

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

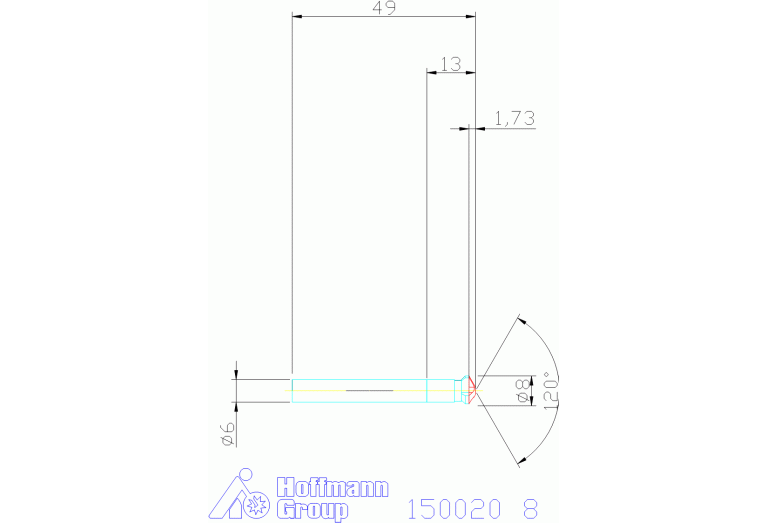

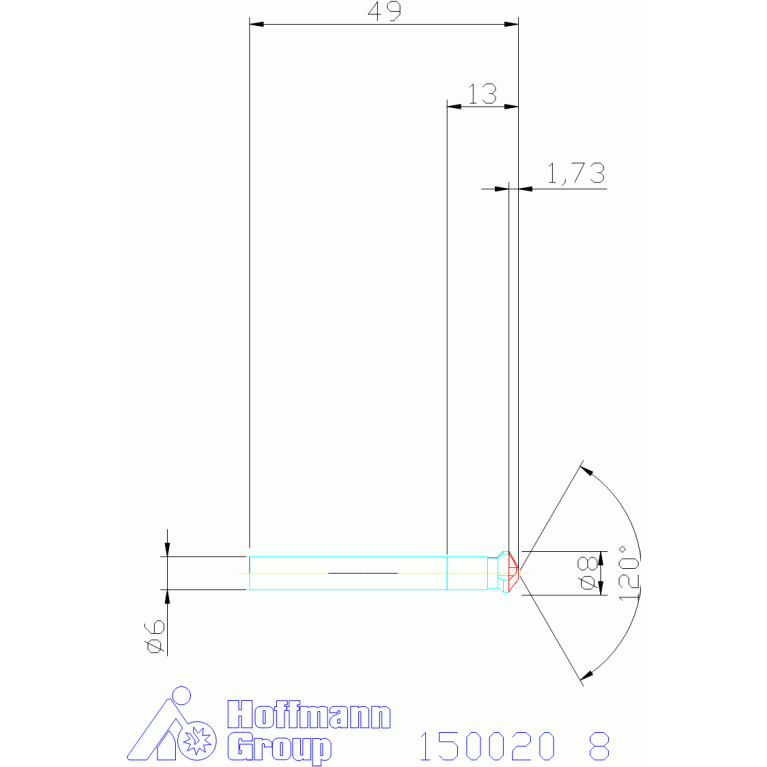

DC Cutting diameter minimum

2 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

8 mm

Delivery state valid from

1/11/2017

DIN

ZYL00600105

FamilyProducts

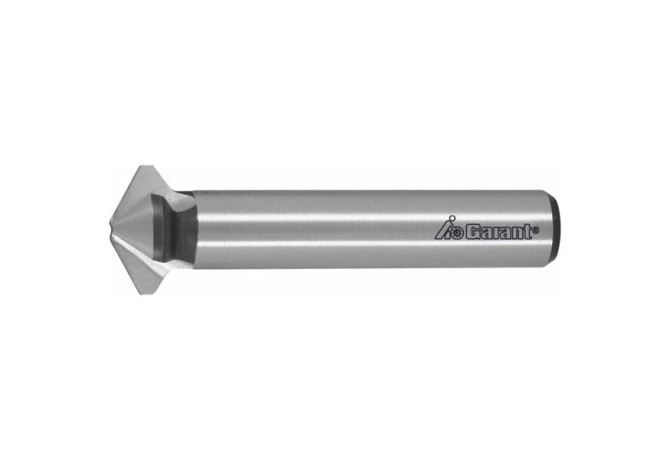

GARANT HSS countersink 120°

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSS

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

3.75 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

13 mm

LU Usable length

1.73 mm

Name Identifying order number

150020 8

NOF Flute count

OAL Overall length

49 mm

SIG Point angle 1st step

120 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.01 kg
