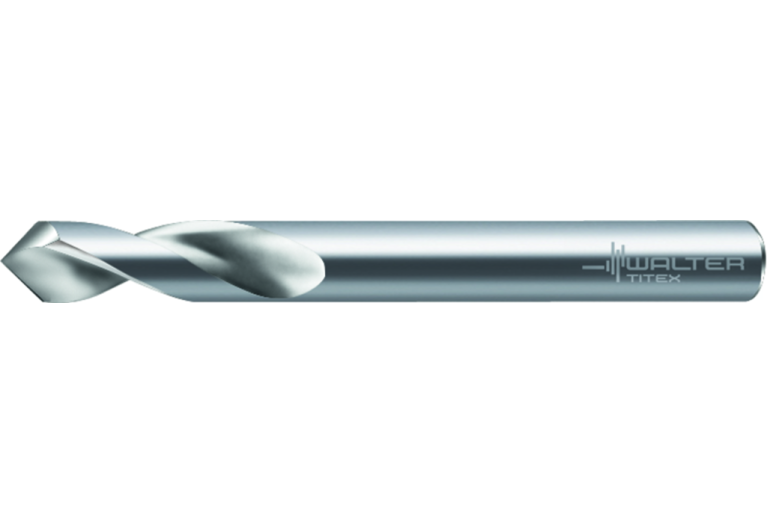

A1174-5/8IN
A1174-5/8IN
Артикул:
5153958
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

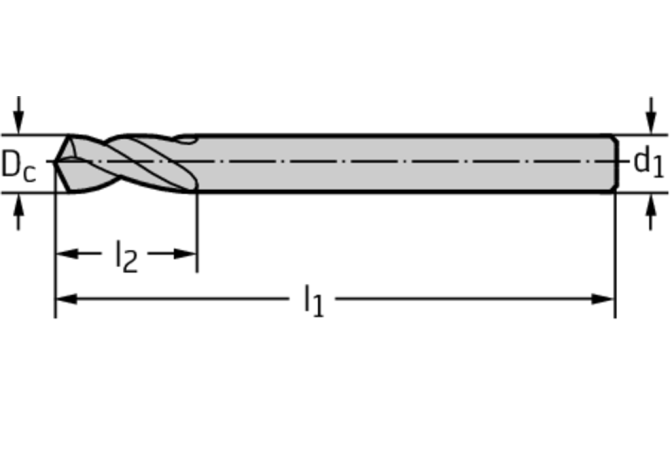

DC Cutting diameter minimum
15.875 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL06250125
FamilyProducts
90° solid carbide NC spot drills A1174
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5153958
Interface codes
J6 / J61
ISO
ZYL01R6250h$06
ISYC Subclass
302-06 - Spot drill
LCF Length chip flute
34 mm
LF Functional length
107.06 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0625
LOC-03 DCONMS Diameter
15.875 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01R6250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL06250125
LPR Protruding length
41.938 mm
LU Usable length
7.94 mm
Name Identifying order number
A1174-5/8IN
NOF Flute count
2
OAL Overall length
115 mm
PL Point length
7.938 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
90 Degree
STDNO Standard
TP-NORM 3
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.28 kg
