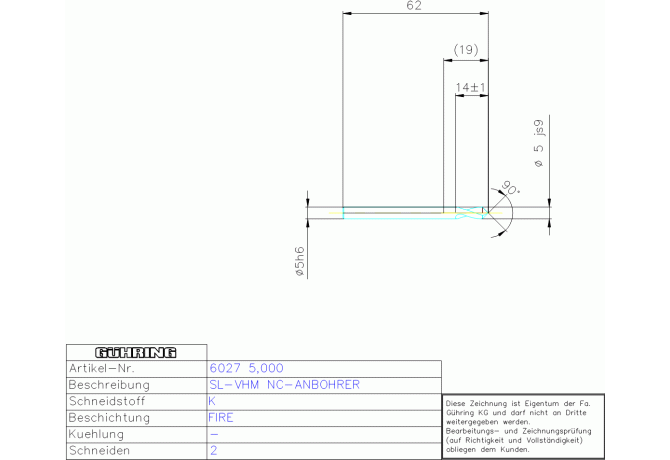

Главная Каталог продукции Toolunited 13 302-06 - Spot drill 6027 5.000

6027 5.000

Артикул: 9060270050000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

FIRE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00500105

FamilyProducts

SL-FIRE VHM NC-ANBOHRER 90° 5,0 WN

FHA Flute helix angle

22 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

40 mm

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HC-K/P

HAND Cutting direction

R - Right

ID Technical product number

9060270050000

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

14 mm

LF Functional length

59.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

LPR Protruding length

19 mm

LS Shank length

48 mm

LU Usable length

11.2 mm

Name Identifying order number

6027 5.000

NOF Flute count

OAL Overall length

62 mm

PL Point length

2.5 mm

SIG Point angle 1st step

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.018 kg
