Главная Каталог продукции Toolunited 13 302-06 - Spot drill 121071 12

121071 12

Артикул: 121071 12

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01201005

FamilyProducts

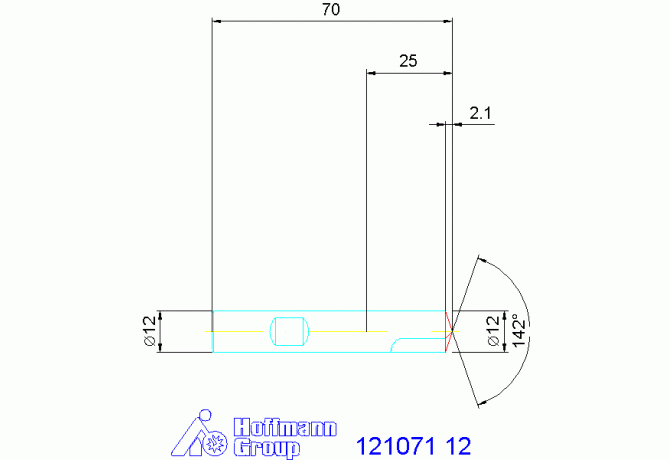

GARANT Solid carbide NC spotting drill 142° straight flutes

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

18 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201005

LPR Protruding length

25 mm

LU Usable length

2.1 mm

Name Identifying order number

121071 12

NOF Flute count

OAL Overall length

70 mm

PL Point length

2.1 mm

SIG Point angle 1st step

142 Degree

Working process

No working processes available

WT Weight of item

0.088 kg
