121041 16
121041 16
Артикул:
121041 16
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL01601005
FamilyProducts

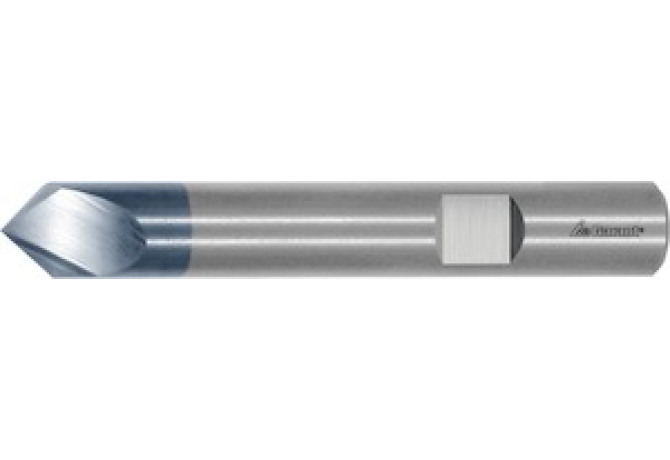

GARANT Solid carbide NC spotting drill 90° straight flutes
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-06 - Spot drill
LCF Length chip flute
24 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601005
LPR Protruding length
27 mm
LU Usable length
8 mm
Name Identifying order number
121041 16
NOF Flute count
2
OAL Overall length
75 mm
PL Point length
8 mm
SIG Point angle 1st step
90 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.174 kg
