Главная Каталог продукции Toolunited 13 302-06 - Spot drill 121021 5

121021 5

Артикул: 121021 5

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00501005

FamilyProducts

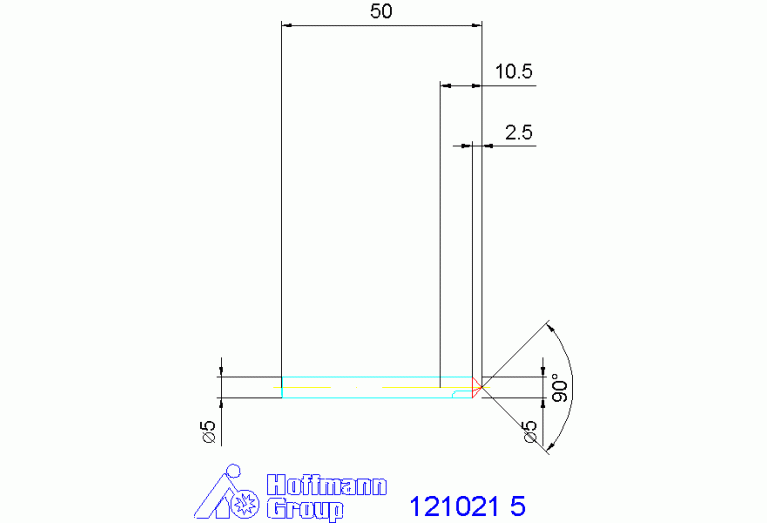

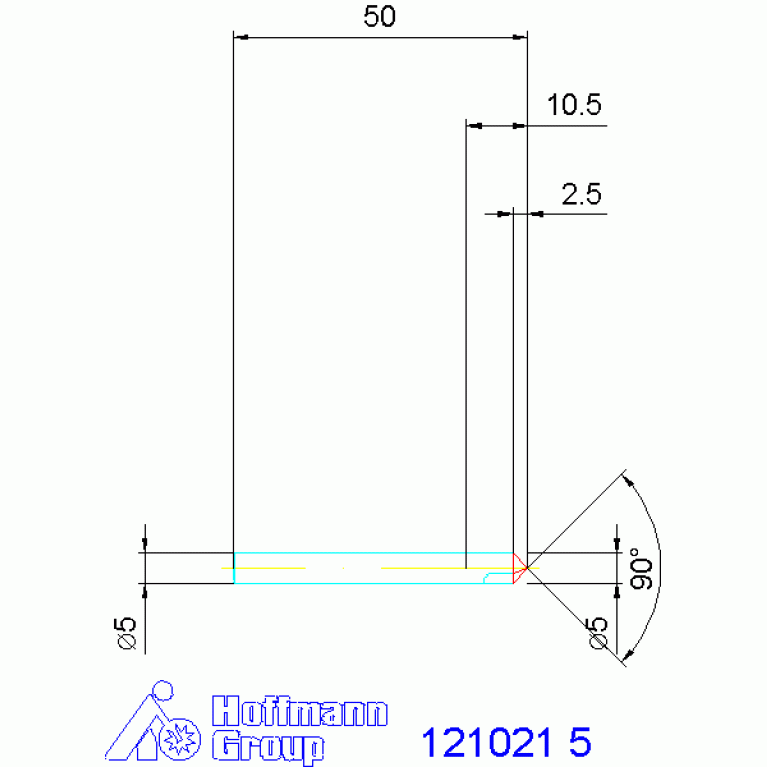

GARANT Solid carbide NC spotting drill 90° straight flutes

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

7.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00501005

LPR Protruding length

10.5 mm

LU Usable length

2.5 mm

Name Identifying order number

121021 5

NOF Flute count

OAL Overall length

50 mm

PL Point length

2.5 mm

SIG Point angle 1st step

90 Degree

Working process

No working processes available

WT Weight of item

0.009 kg
