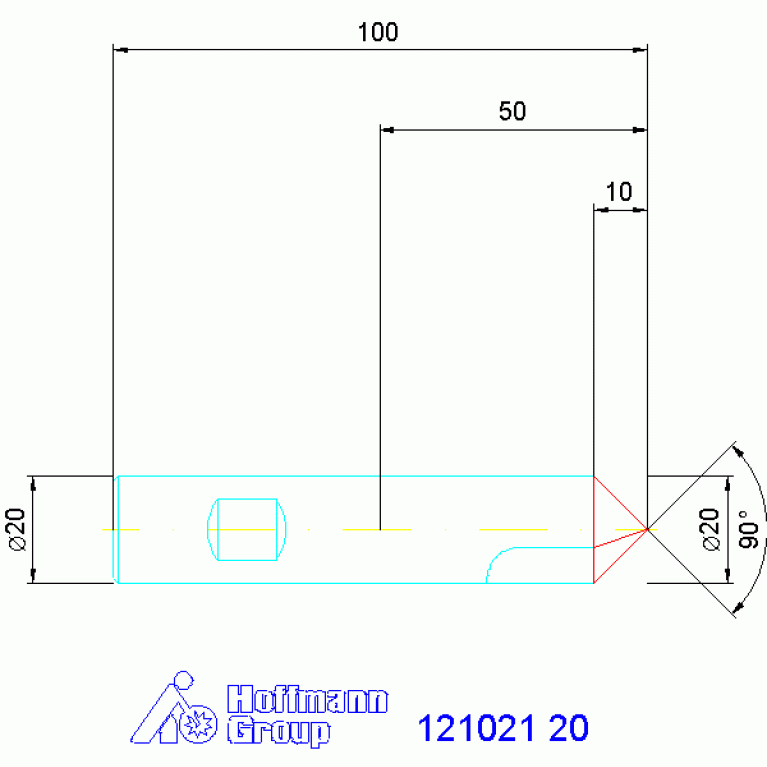

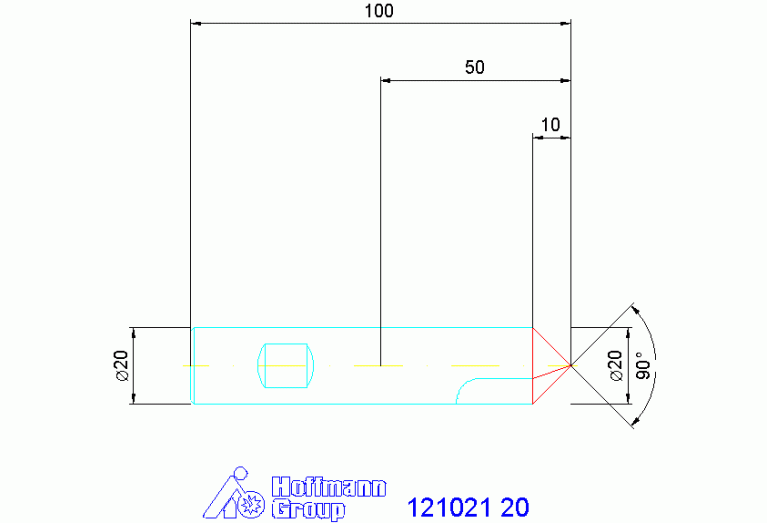

Главная Каталог продукции Toolunited 13 302-06 - Spot drill 121021 20

121021 20

Артикул: 121021 20

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02001005

FamilyProducts

GARANT Solid carbide NC spotting drill 90° straight flutes

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001005

LPR Protruding length

50 mm

LU Usable length

10 mm

Name Identifying order number

121021 20

NOF Flute count

OAL Overall length

100 mm

PL Point length

10 mm

SIG Point angle 1st step

90 Degree

Working process

No working processes available

WT Weight of item

0.293 kg
