Главная Каталог продукции Toolunited 13 302-06 - Spot drill 121019 10

121019 10

Артикул: 121019 10

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01000105

FamilyProducts

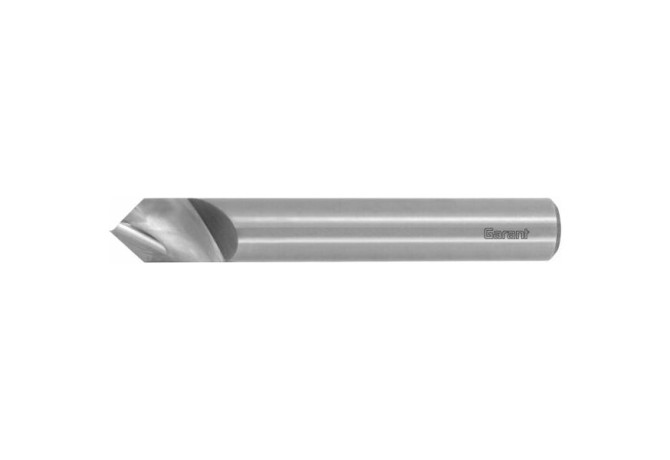

GARANT Solid carbide NC precision spotting drill 90°

FHA Flute helix angle

18 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

40 mm

LS Shank length

60 mm

LU Usable length

5 mm

Name Identifying order number

121019 10

NOF Flute count

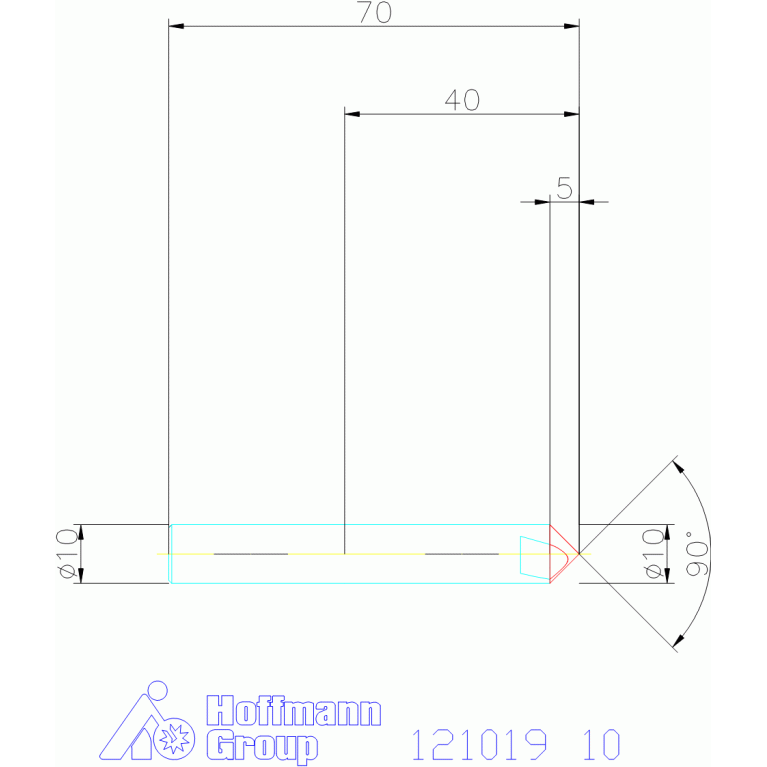

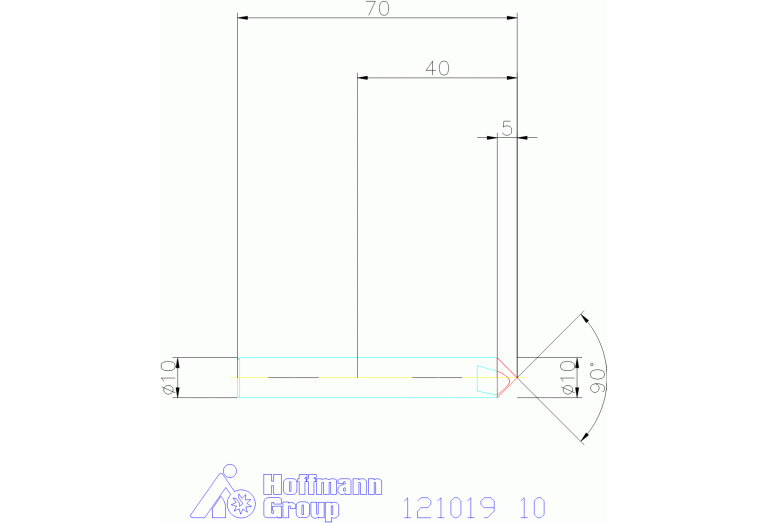

OAL Overall length

70 mm

PL Point length

5 mm

SIG Point angle 1st step

90 Degree

Working process

BVB - Drilling

WT Weight of item

0.72 kg
