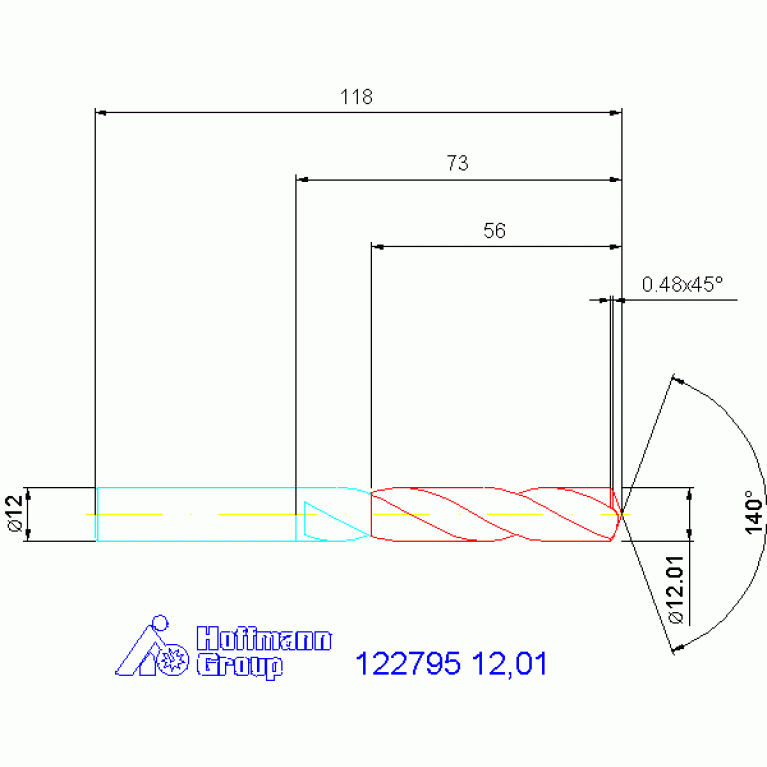

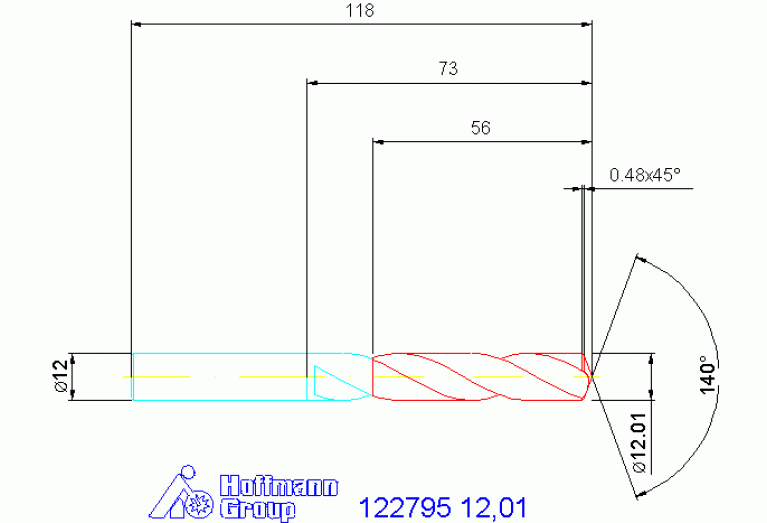

Главная Каталог продукции Toolunited 13 302-00 - Drill unspecified 122795 12,01

122795 12,01

Артикул: 122795 12,01

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

12.01 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01200115

FamilyProducts

GARANT Solid carbide drill-reamer plain shank DIN 6535 HA H7

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-00 - Drill unspecified

LCF Length chip flute

71 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

73 mm

LU Usable length

56 mm

Name Identifying order number

122795 12,01

NOF Flute count

OAL Overall length

118 mm

SIG Point angle 1st step

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.131 kg
