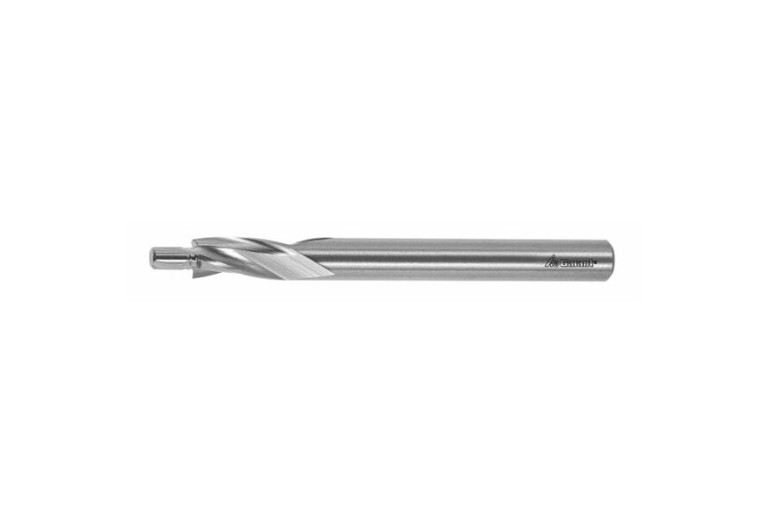

155700 5X2,7

Артикул: 155700 5X2,7

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

5 mm

DCINTF Interference cutting diameter

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00500105

FamilyProducts

GARANT Mini 180° counterbore for through holes 180°

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GPD Guide pilot diameter

2.7 mm

GPL Guide pilot length

3 mm

GRDMFG Grade manufacturers designation

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-04 - Counterbore

LCF Length chip flute

13 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

LPR Protruding length

17 mm

LU Usable length

10 mm

Name Identifying order number

155700 5X2,7

NOF Flute count

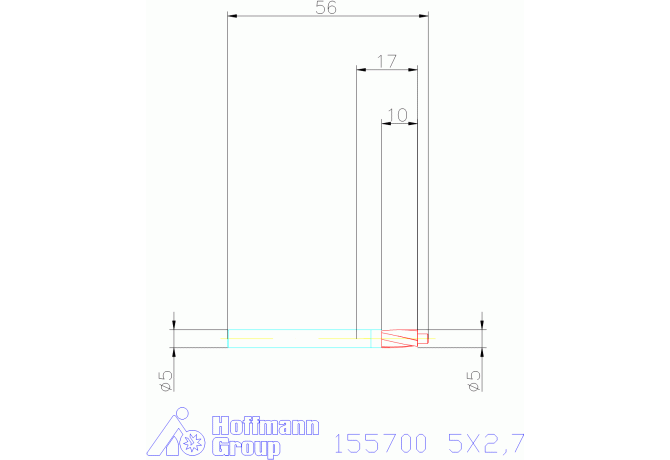

OAL Overall length

56 mm

SIG Point angle 1st step

180 Degree

Working process

BVB - Drilling

WT Weight of item

0.008 kg
