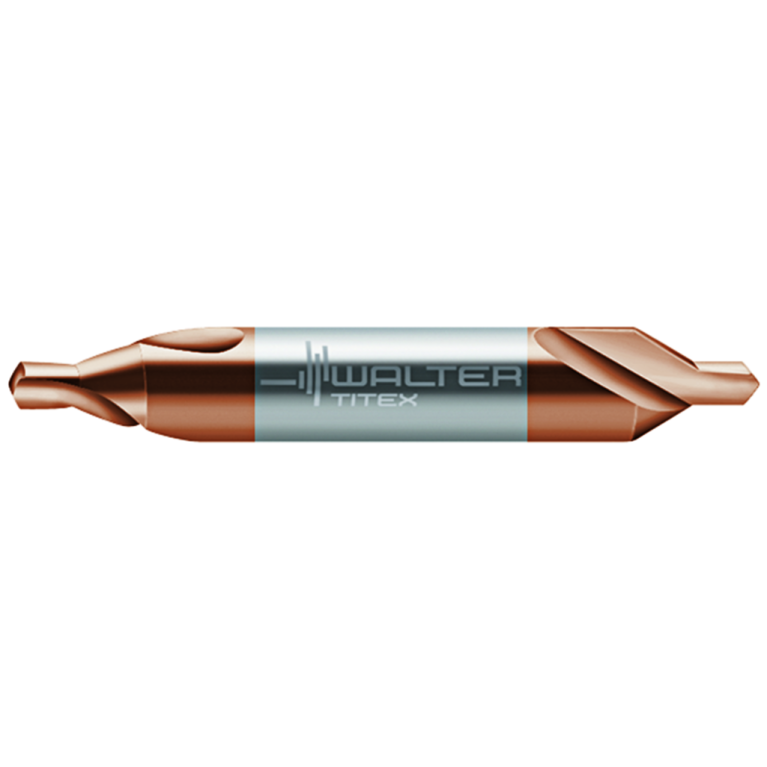

K1161XPL-5
K1161XPL-5
Артикул:
6250950
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
AlCrN
COMPC Company code
W - Walter
CTRSYC Centre drill style code
A - Form A
CXSC Coolant exit style code
0 - Without coolant exit

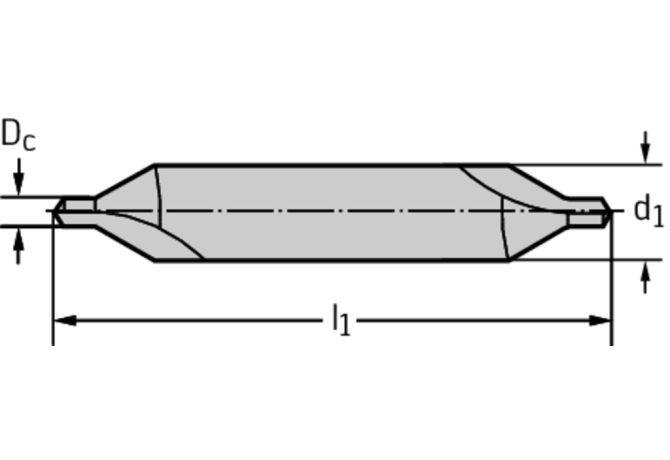

DC Cutting diameter minimum
5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01250105
FamilyProducts
Solid carbide center drills K1161XPL
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
XPL
HAND Cutting direction
R - Right
ID Technical product number
6250950
Interface codes
J6 / J61
ISO
ZYL01G1250h$09
ISYC Subclass
302-07 - Centre drill
LCF Length chip flute
25 mm
LF Functional length
61.5 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0125
LOC-03 DCONMS Diameter
12.5 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL01G1250h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01250105
LS Shank length
45 mm
LU Usable length
8.23 mm
Materials
P,M,K,N,S,H,O
Name Identifying order number
K1161XPL-5
NOF Flute count
2
OAL Overall length
63 mm
PL Point length
1.502 mm
RPMX Rotational speed maximum
6300 1/min
SIG Point angle 1st step
118 Degree
STDNO Standard
DIN 333-A
TCDCONMS ISO-tolerance class shank diameter
h9
Working process
BVB - Drilling
WT Weight of item
0.074 kg
