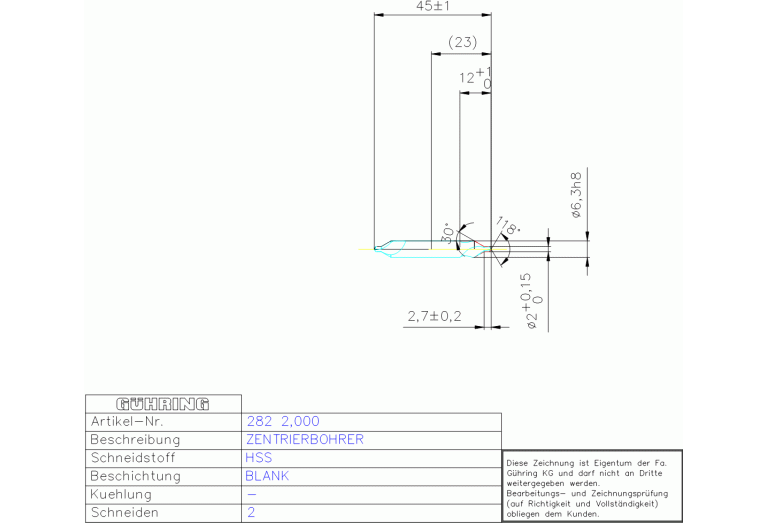

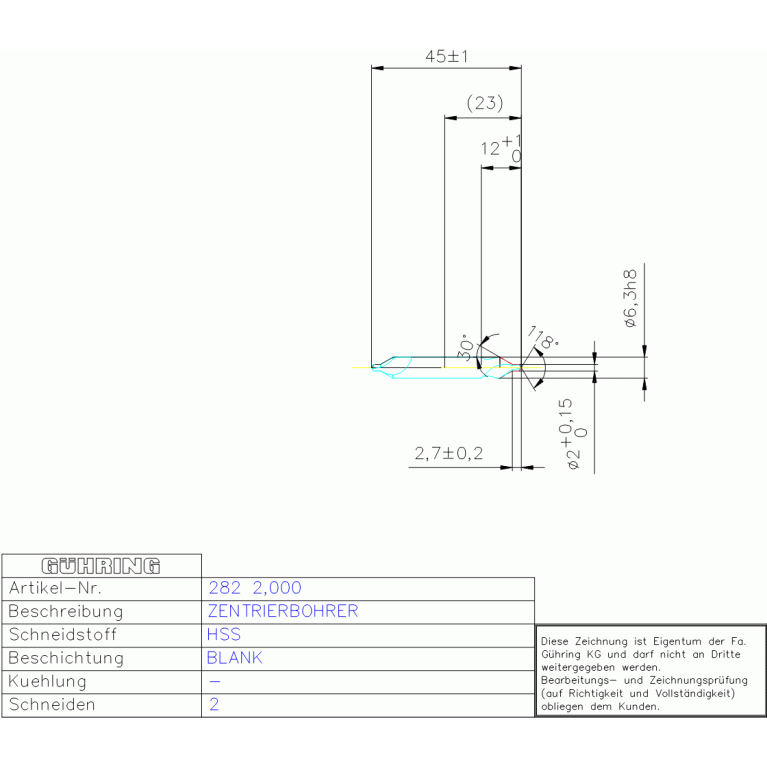

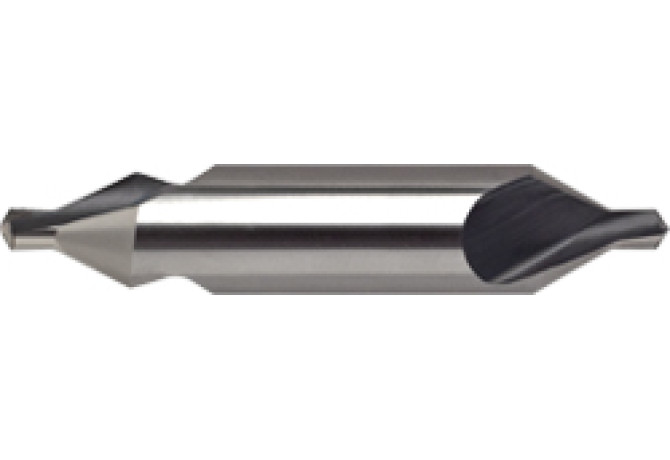

Главная Каталог продукции Toolunited 13 302-07 - Centre drill 282 2.000

282 2.000

Артикул: 9002820020000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

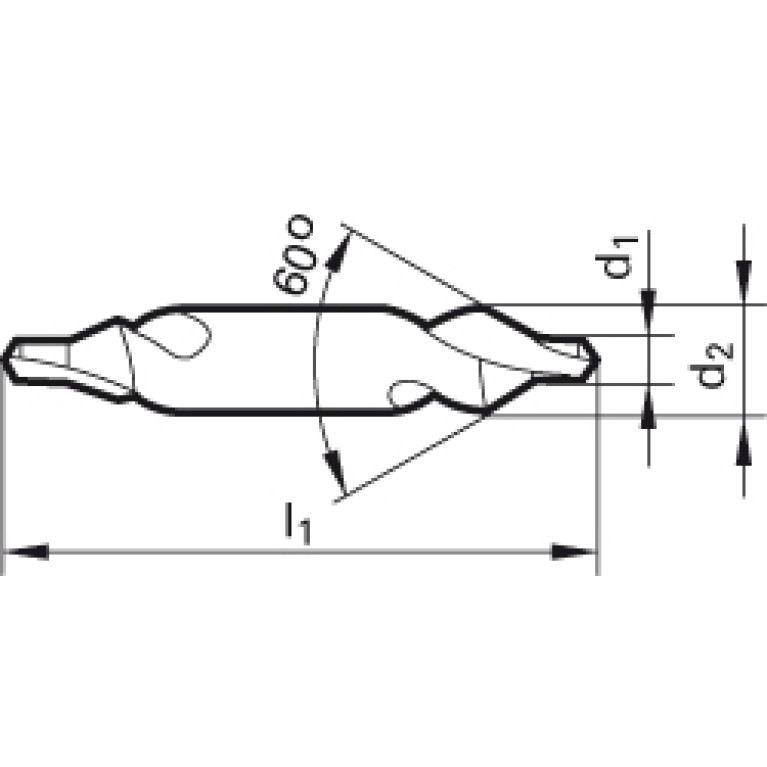

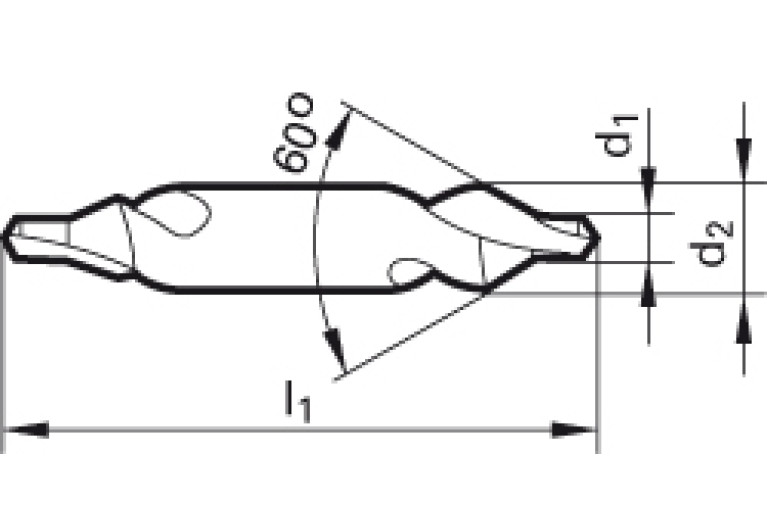

CTRSYC Centre drill style code

A - Form A

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

2 mm

DCONMSLD Shank diameter lower limit

-0.022 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00630105

DRSYC Drill tool style code

6 - center drill

FamilyProducts

HSS ZENTRIERBOH,WN LN FORM A 2,00

FHA Flute helix angle

29 Degree

FHP Flute helix pitch

35.5 mm

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

GRDSYC Grind style code

HAND Cutting direction

L - Left

ID Technical product number

9002820020000

Interface codes

J6 /

ISYC Subclass

302-07 - Centre drill

LCF Length chip flute

12 mm

LF Functional length

44.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0063

LOC-03 DCONMS Diameter

6.3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00630105

LPR Protruding length

23 mm

LU Usable length

6.5 mm

Name Identifying order number

282 2.000

NOF Flute count

OAL Overall length

45 mm

PL Point length

0.7 mm

SDL Step diameter length

1.3 mm

SIG Point angle 1st step

118 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BZB - Center-drilling

WT Weight of item

0.008 kg
