111250 0,8
111250 0,8
Артикул:
111250 0,8
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CTRSYC Centre drill style code
A - Form A
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00310105
DRSYC Drill tool style code
6 - center drill
FamilyProducts

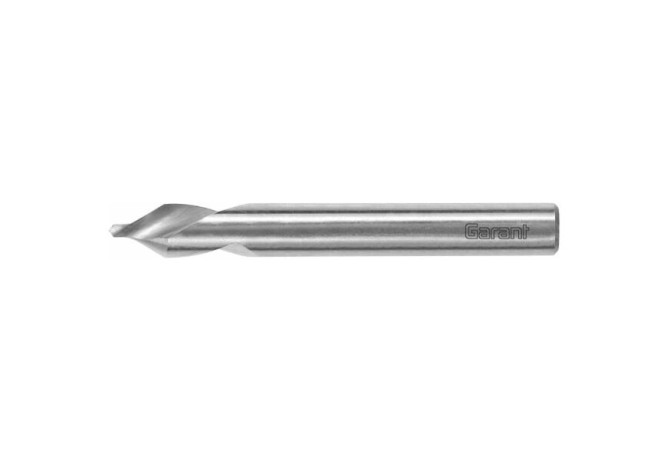

GARANT Centre drill HSS A left-hand
FHA Flute helix angle
30 Degree
FHH Flute helix hand
L - Hand of helix left
GRDMFG Grade manufacturers designation
HSS
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
302-07 - Centre drill
LCF Length chip flute
7.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0031
LOC-03 DCONMS Diameter
3.15 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00310105

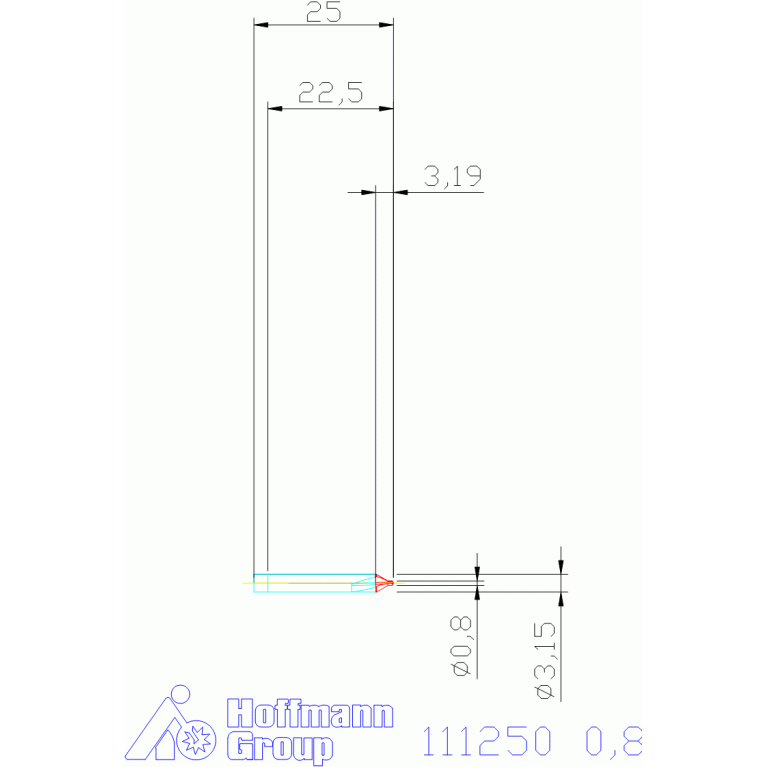

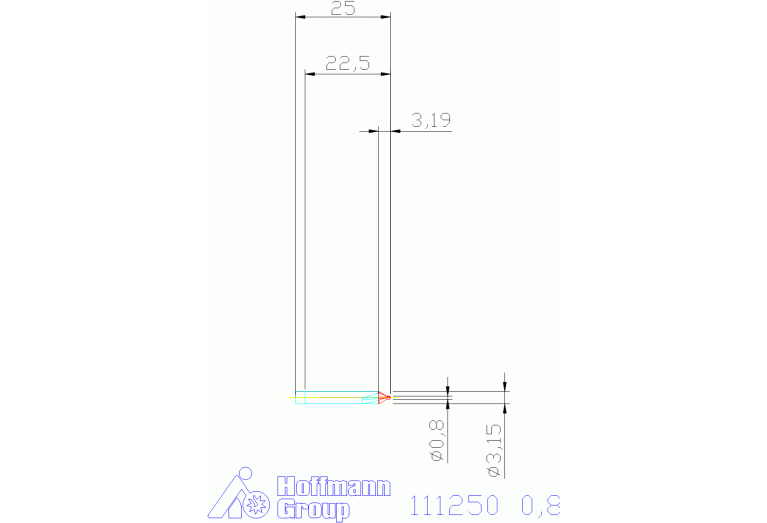

LPR Protruding length
22.5 mm
LU Usable length
3.19 mm
Name Identifying order number
111250 0,8
NOF Flute count
2
OAL Overall length
25 mm
SDL Step diameter length
0.76 mm
SIG Point angle 1st step
118 Degree
STDLET Standard letter to the standard number
A
STDNO Standard
DIN333
TCDCONMS ISO-tolerance class shank diameter
h7
Working process
BVB - Drilling
WT Weight of item
0.002 kg
