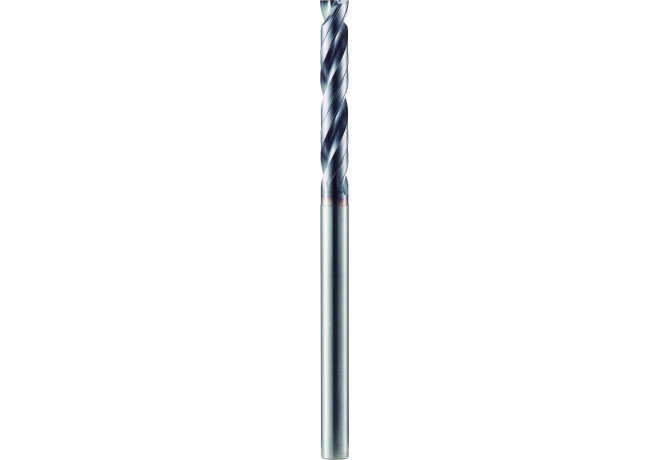

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill TLD5DCH1120S12

TLD5DCH1120S12

Артикул: TLD5DCH1120S12

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

DJT - Dijet

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

11.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/30/2024

DIN

ZYL01200115

FamilyProducts

Spot Facing Drill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

Interface codes

J6 / J61

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

75 mm

LDRED Neck length

77.001 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

LPR Protruding length

78.1 mm

LS Shank length

66.9 mm

LU Usable length

60 mm

Materials

P,M,K,N,S,H,O

Name Identifying order number

TLD5DCH1120S12

NOF Flute count

OAL Overall length

145 mm

SIG Point angle 1st step

180 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BAB - Open by boring,BVB - Drilling,SPL - Spot facing

WT Weight of item

0.18 kg
