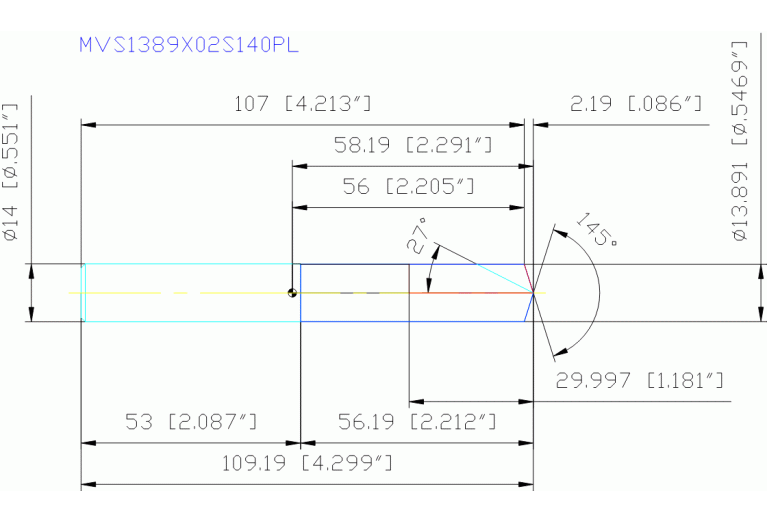

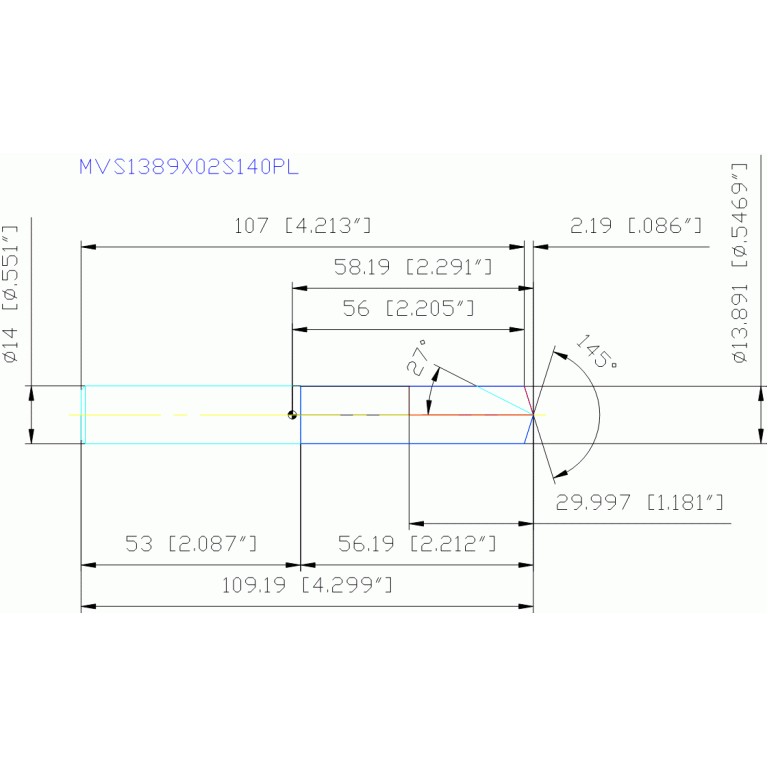

MVS1389X02S140PL DP1020

Артикул: 10542972

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

13.891 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL05510135

FamilyProducts

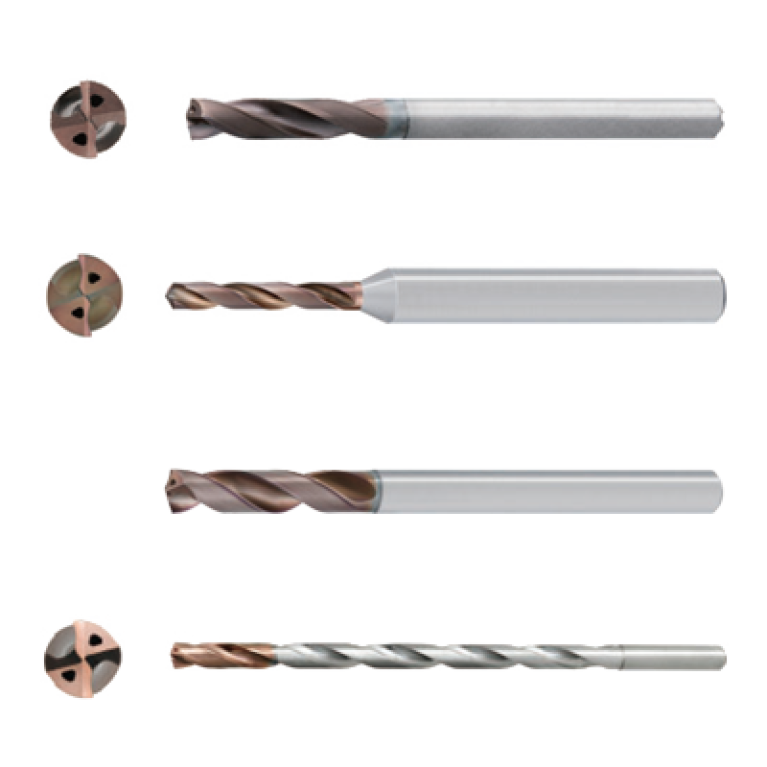

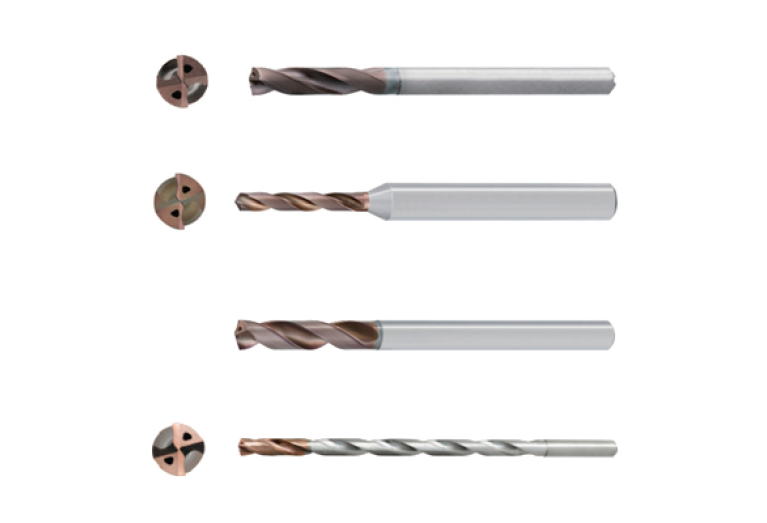

Solid carbide drill

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1020

HAND Cutting direction

R - Right

ID Technical product number

10542972

Interface codes

J6 / J61

ISO

ZYL01R5510h$06

ISYC Subclass

302-01 - Twist Drill

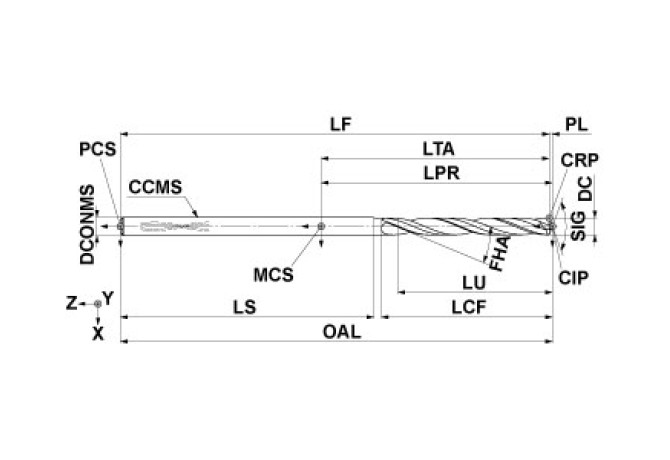

LCF Length chip flute

56.21 mm

LF Functional length

107.01 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0551

LOC-03 DCONMS Diameter

13.995 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R5510h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05510135

LPR Protruding length

58.191 mm

LS Shank length

53.01 mm

LU Usable length

29.997 mm

Name Identifying order number

MVS1389X02S140PL DP1020

NOF Flute count

OAL Overall length

109.195 mm

PL Point length

2.184 mm

SIG Point angle 1st step

145 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
