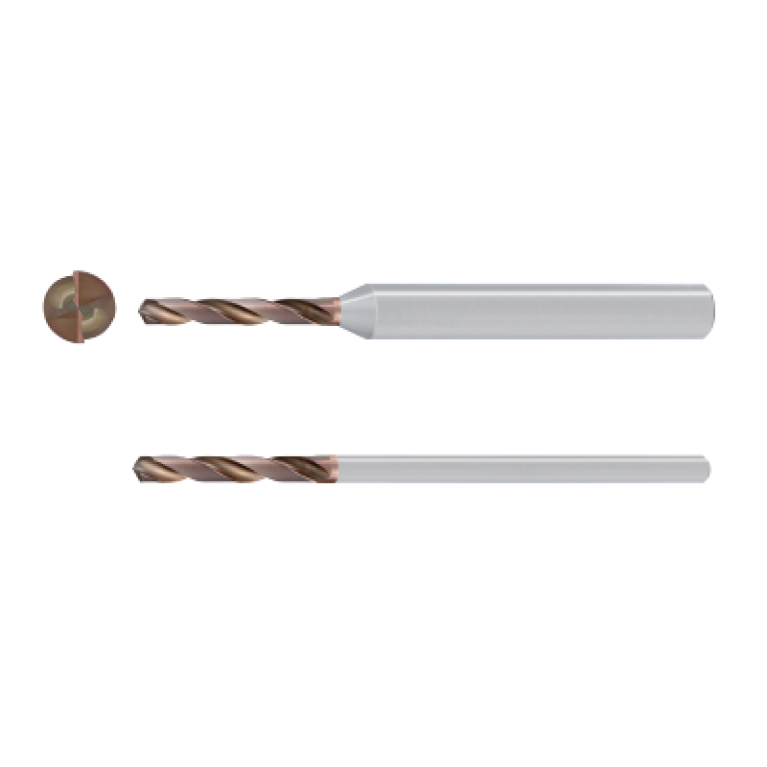

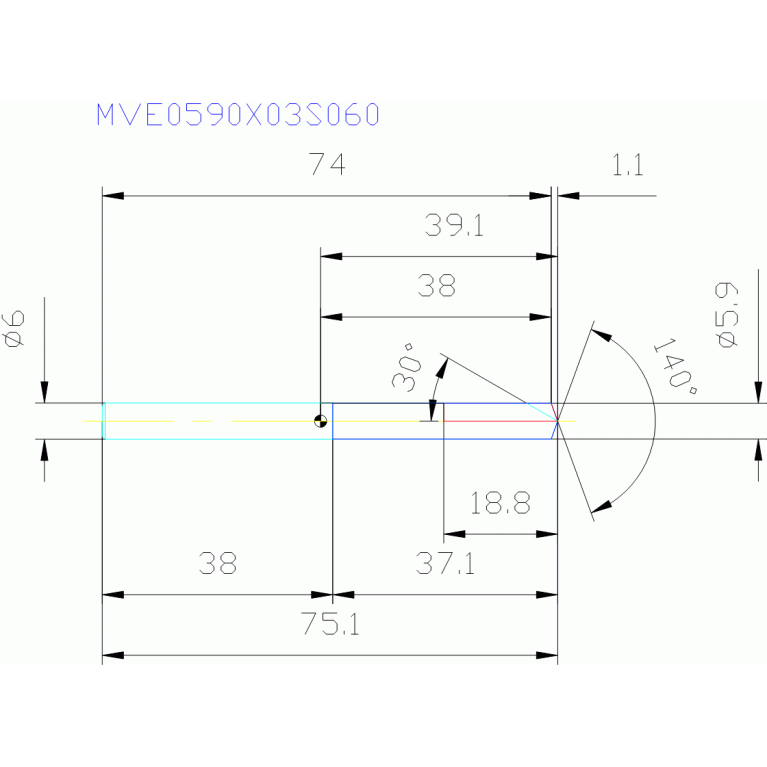

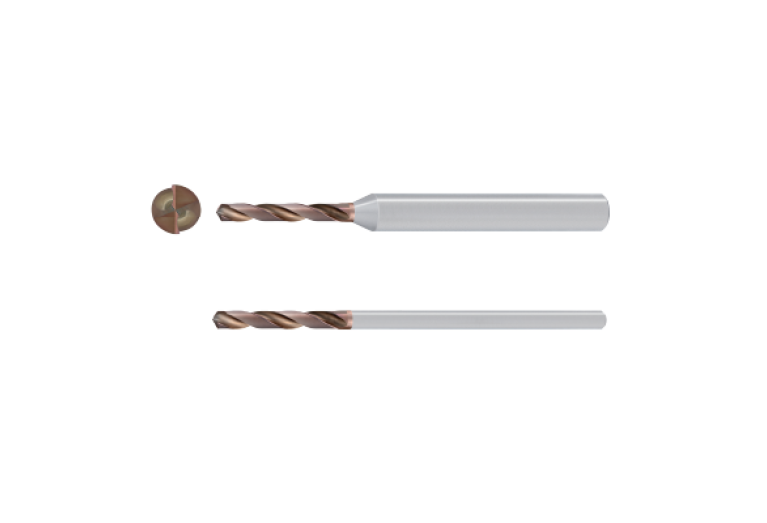

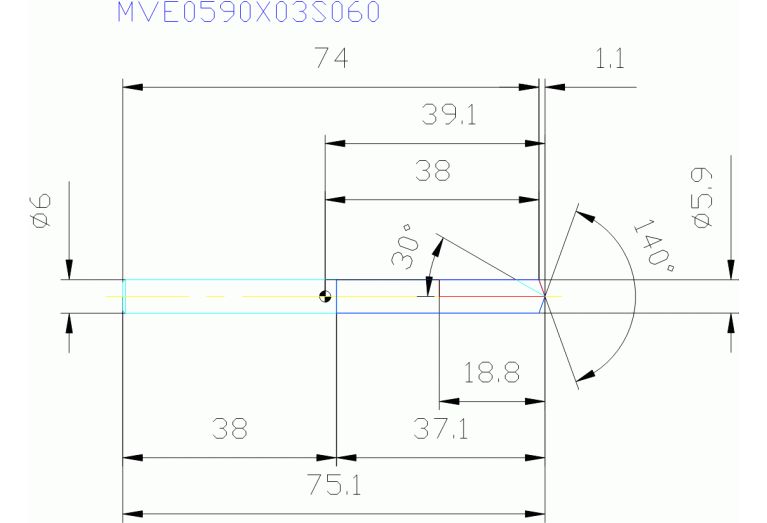

MVE0590X03S060 DP1020
MVE0590X03S060 DP1020
Артикул:
665281
В наличии

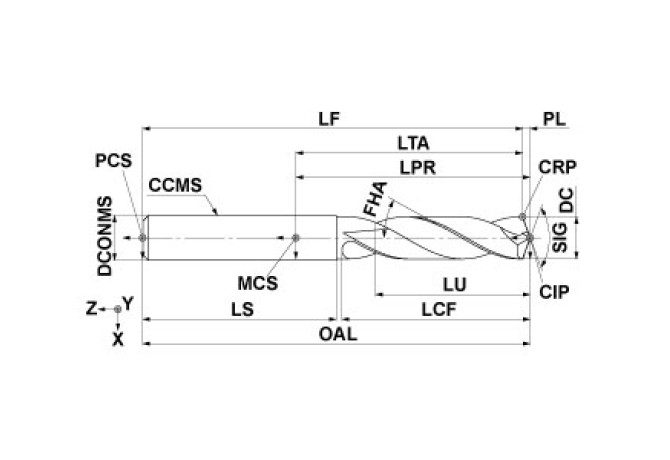

Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
AlTiCrN
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
5.9 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2024
DIN
ZYL00600105
FamilyProducts
Solid carbide drill
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
DP1020
HAND Cutting direction
R - Right
ID Technical product number
665281
Interface codes
J6 / J61
ISO
ZYL01F6000h$06
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
37.1 mm
LF Functional length
74 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01F6000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR Protruding length
39.1 mm
LS Shank length
38 mm
LU Usable length
18.8 mm
Name Identifying order number
MVE0590X03S060 DP1020
NOF Flute count
2
OAL Overall length
75.1 mm
PL Point length
1.1 mm
SIG Point angle 1st step
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
