Главная Каталог продукции Toolunited 13 302-01 - Twist Drill MFE0873X02S100 DP1020

MFE0873X02S100 DP1020

Артикул: 10562628

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

AlTiCrN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8.733 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL03940125

FamilyProducts

Solid carbide flat bottom drill

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP1020

HAND Cutting direction

R - Right

ID Technical product number

10562628

Interface codes

J6 / J61

ISO

ZYL01R3940h$06

ISYC Subclass

302-01 - Twist Drill

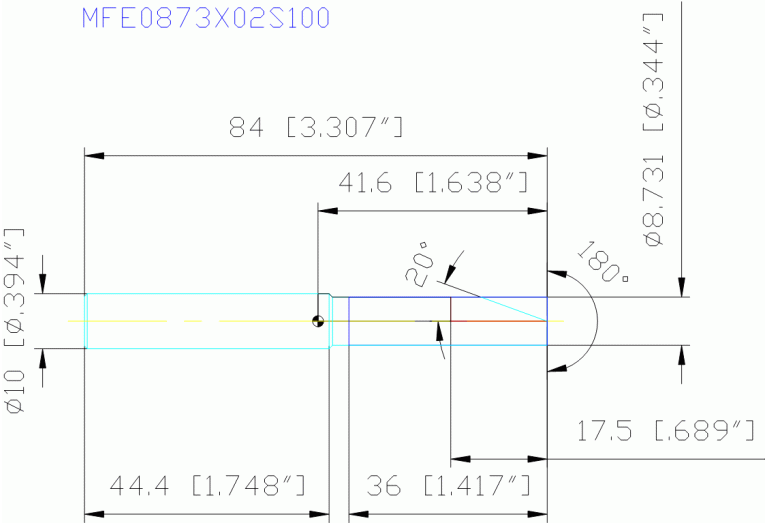

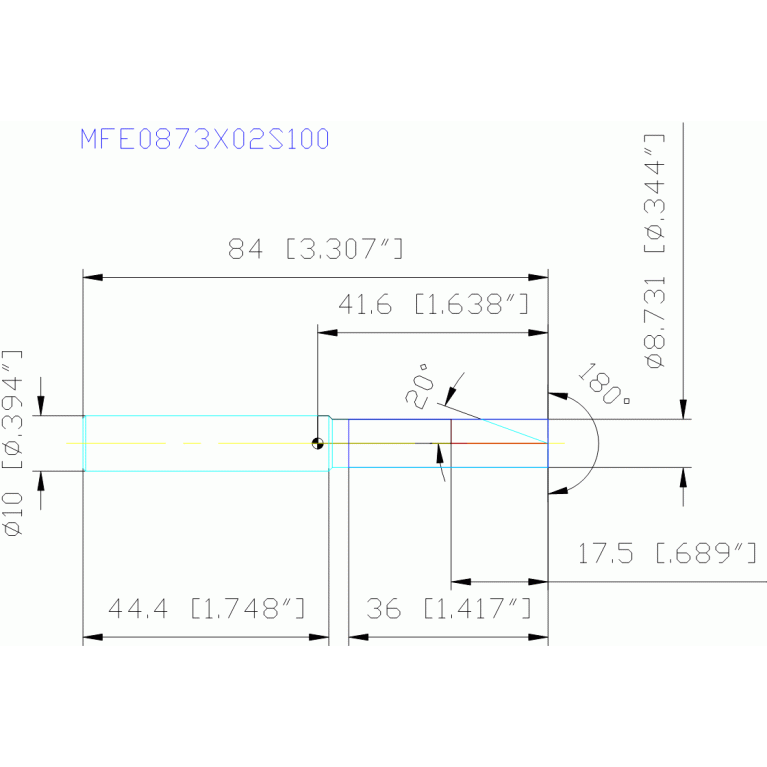

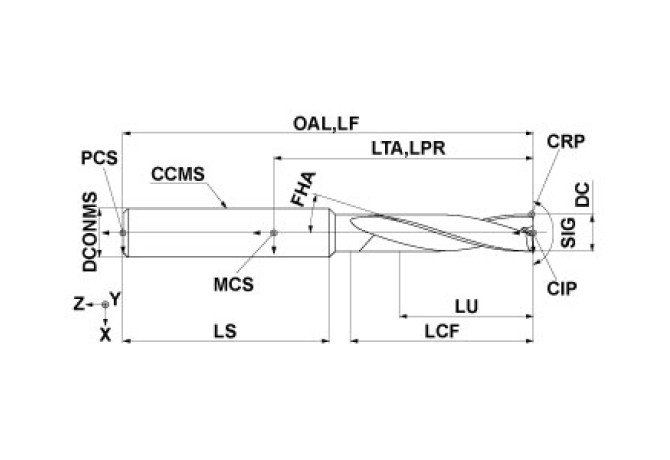

LCF Length chip flute

35.992 mm

LF Functional length

83.998 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0394

LOC-03 DCONMS Diameter

10.008 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R3940h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03940125

LPR Protruding length

41.605 mm

LS Shank length

44.399 mm

LU Usable length

17.501 mm

Name Identifying order number

MFE0873X02S100 DP1020

NOF Flute count

OAL Overall length

83.998 mm

PL Point length

0 mm

SIG Point angle 1st step

180 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
