MCS03760X3DB DD2010

Артикул: 569491

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

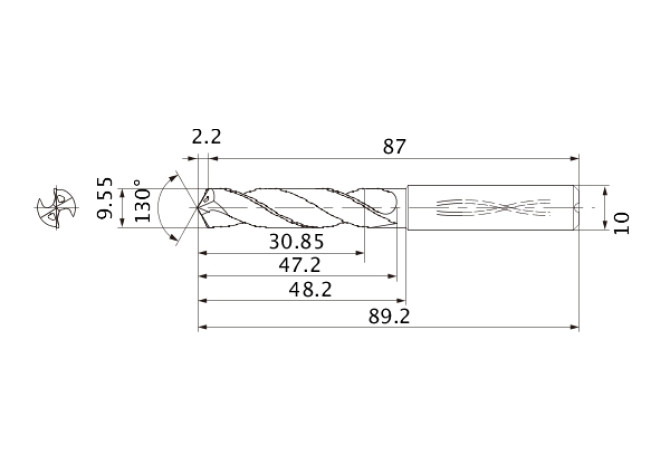

DC Cutting diameter minimum

9.55 mm

DCONMSLD Shank diameter lower limit

-0.009 mm

DCONMSUD Shank diameter upper limit

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01000105

FamilyProducts

WSTAR drill with wavy cutting edge for alu stacks

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DD2010

HAND Cutting direction

R - Right

ID Technical product number

569491

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

47.2 mm

LF Functional length

87 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LU Usable length

30.85 mm

Materials

Name Identifying order number

MCS03760X3DB DD2010

NOF Flute count

OAL Overall length

89.2 mm

PL Point length

2.2 mm

SIG Point angle 1st step

130 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
