Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS280MAV

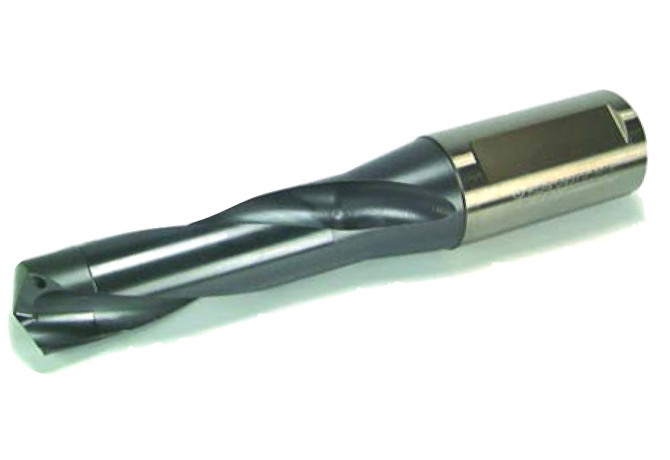

KDS280MAV

KDS280MAV KDS280MAV KDS280MAV

KDS280MAV

Sumitomo
Артикул: KDS280MAV
В наличии
В корзину
Описание
Характеристики
BMC Body material code
B - Steel body with brazed carbide inserts
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
28 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/9/2021
DIN
ZYL03201015
FamilyProducts
KDS-MAV Series Brazed Carbide-Tipped Drill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
G10E
HAND Cutting direction
R - Right
ID Technical product number
KDS280MAV
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
118 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LPR Protruding length
120 mm
LS Shank length
60 mm
LU Usable length
97 mm
Name Identifying order number
KDS280MAV
OAL Overall length
180 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
