Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS270MAV

KDS270MAV

Артикул: KDS270MAV

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

27 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/9/2021

DIN

ZYL03201015

FamilyProducts

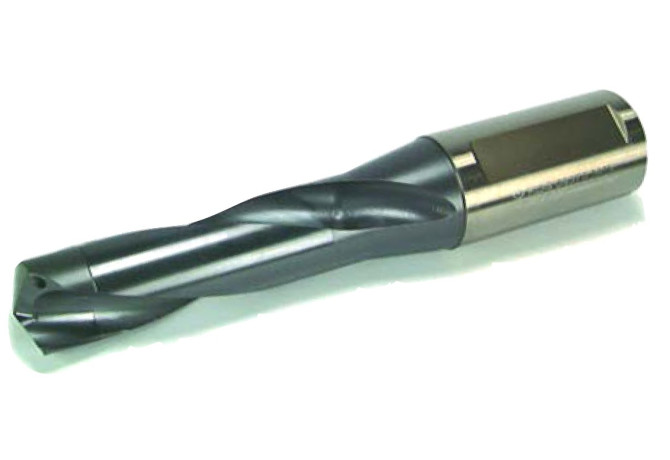

KDS-MAV Series Brazed Carbide-Tipped Drill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

G10E

HAND Cutting direction

R - Right

ID Technical product number

KDS270MAV

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

113 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LPR Protruding length

115 mm

LS Shank length

60 mm

LU Usable length

94 mm

Name Identifying order number

KDS270MAV

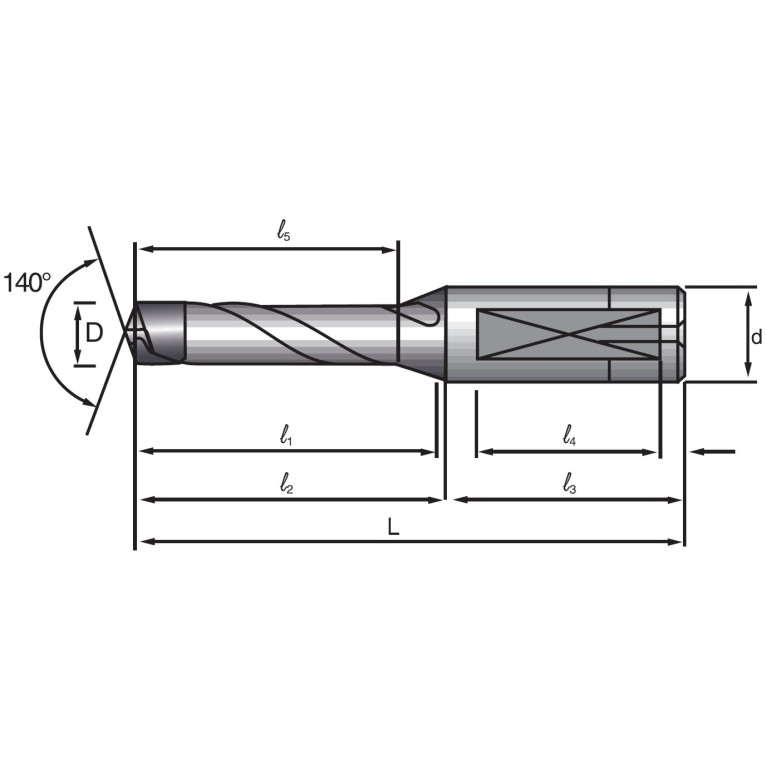

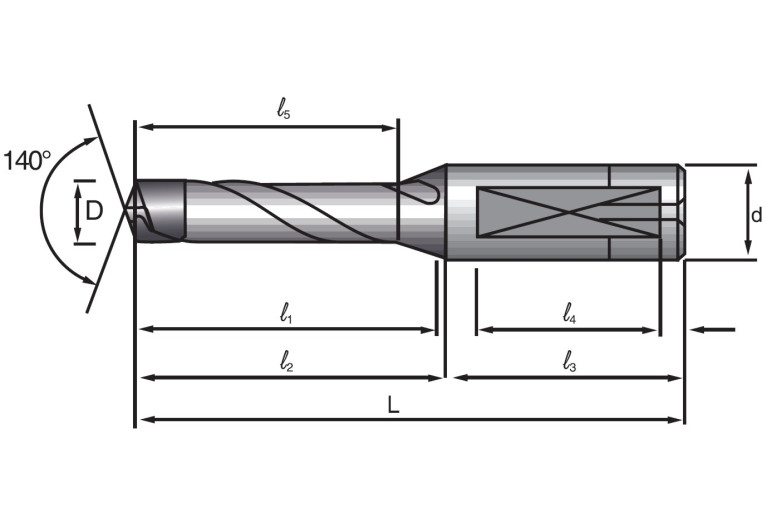

OAL Overall length

175 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
