Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS110MAV

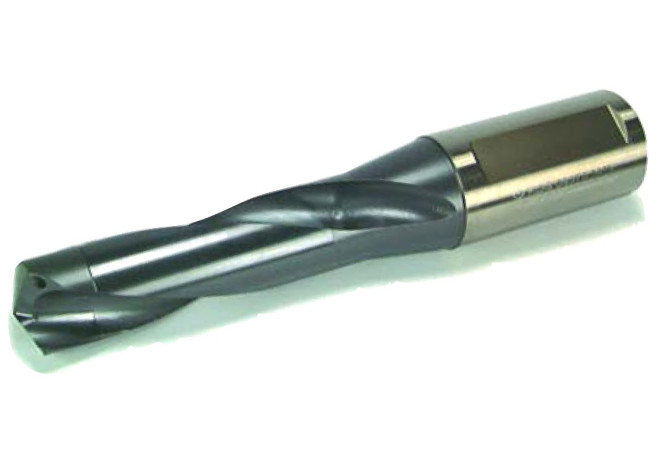

KDS110MAV

KDS110MAV KDS110MAV KDS110MAV

KDS110MAV

Sumitomo
Артикул: KDS110MAV
В наличии
В корзину
Описание
Характеристики

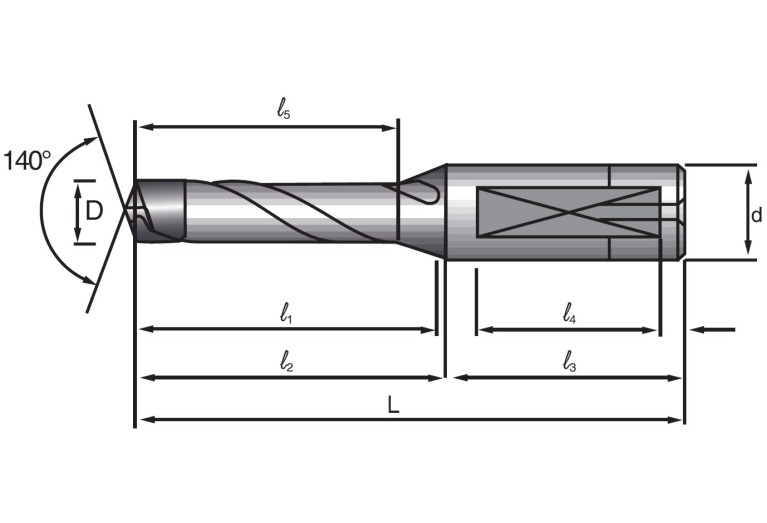

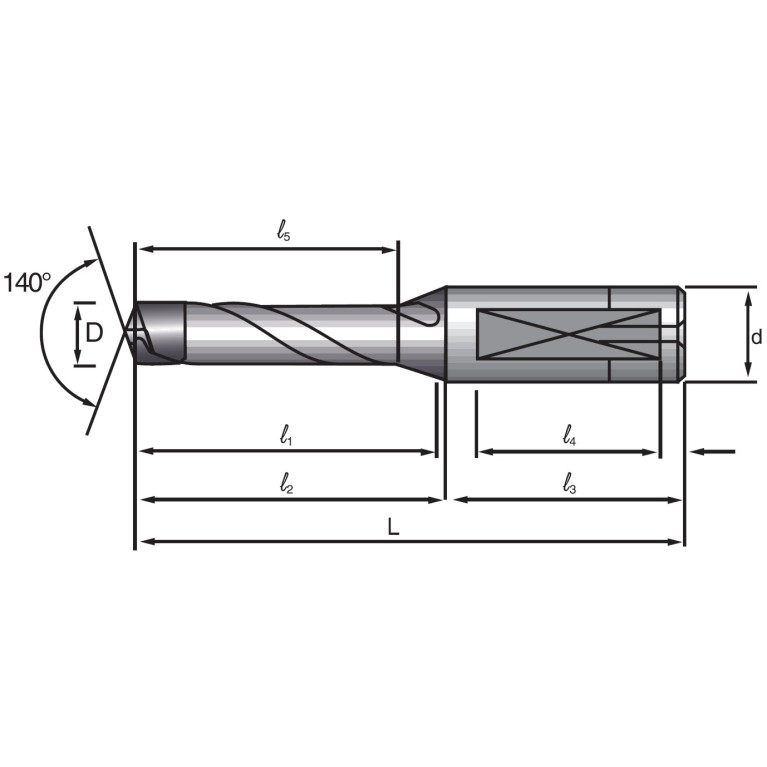

BMC Body material code
B - Steel body with brazed carbide inserts
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
11 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/9/2021
DIN
ZYL01601015
FamilyProducts
KDS-MAV Series Brazed Carbide-Tipped Drill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
G10E
HAND Cutting direction
R - Right
ID Technical product number
KDS110MAV
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
50 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
52 mm
LS Shank length
48 mm
LU Usable length
40 mm
Name Identifying order number
KDS110MAV
OAL Overall length
100 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
