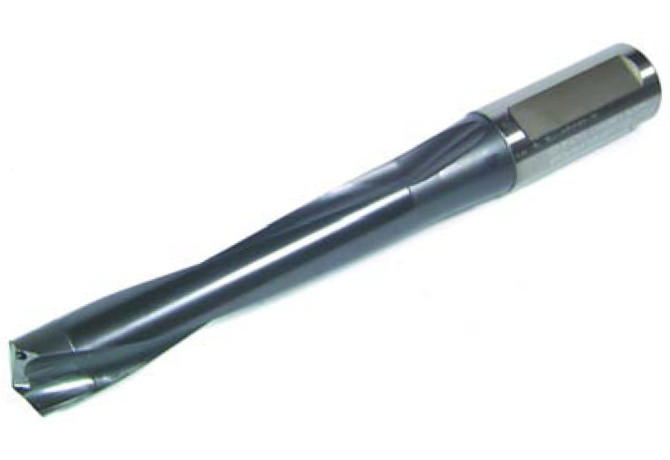

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS11094LAV

KDS11094LAV

Артикул: KDS11094LAV

В наличии

В корзину

Описание

Характеристики

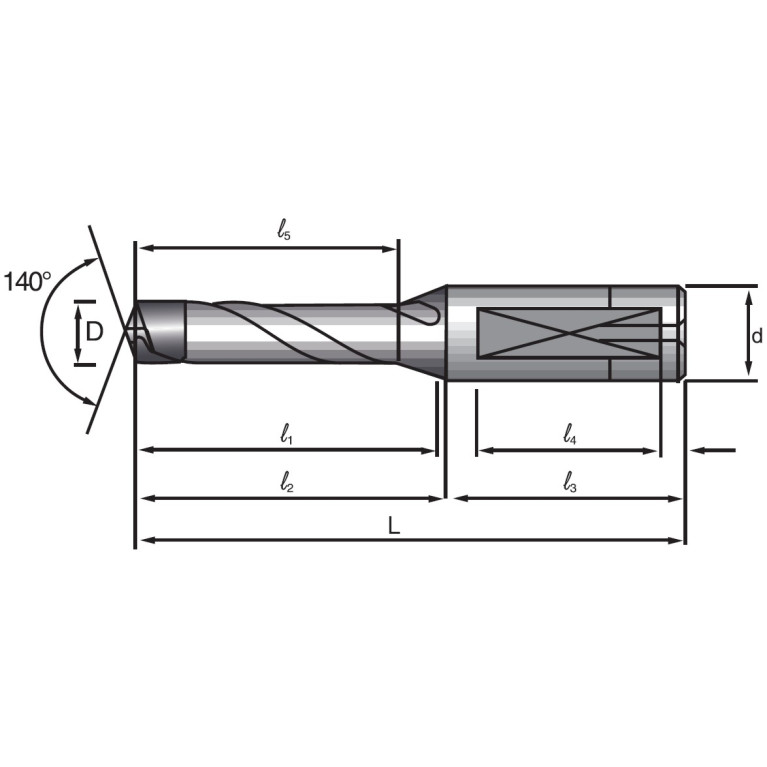

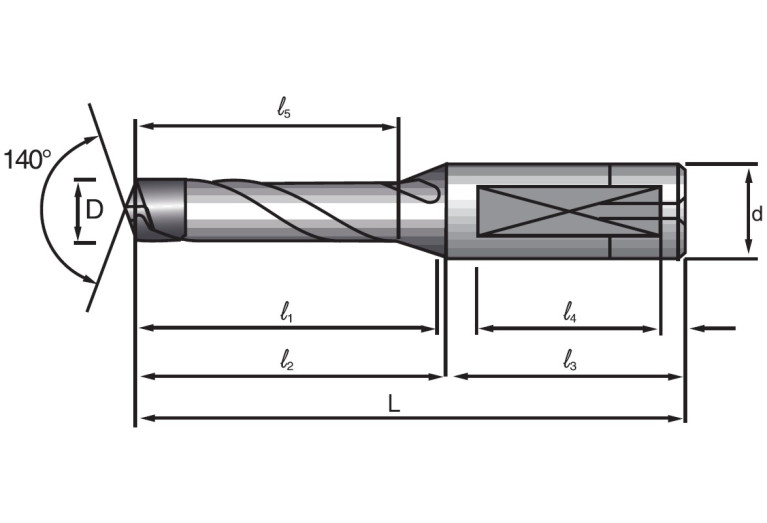

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

28.1788 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/9/2021

DIN

ZYL12501035

FamilyProducts

KDS-LAV Series Brazed Carbide-Tipped Drill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

G10E

HAND Cutting direction

R - Right

ID Technical product number

KDS11094LAV

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

177.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501035

LPR Protruding length

179.4002 mm

LS Shank length

60.325 mm

LU Usable length

156.7688 mm

Name Identifying order number

KDS11094LAV

OAL Overall length

239.7252 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
