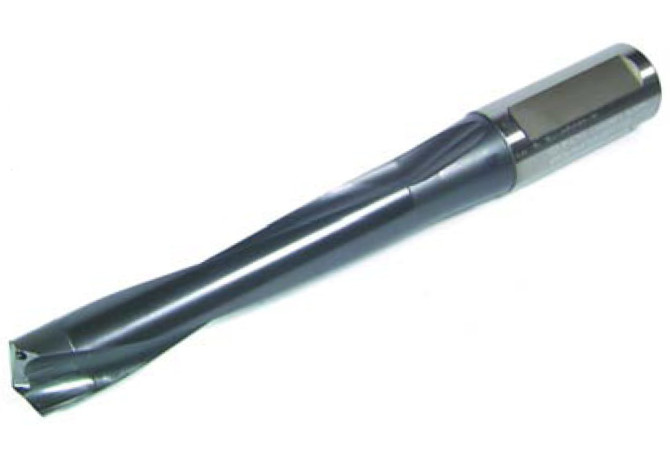

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS08750LAV

KDS08750LAV

Артикул: KDS08750LAV

В наличии

В корзину

Описание

Характеристики

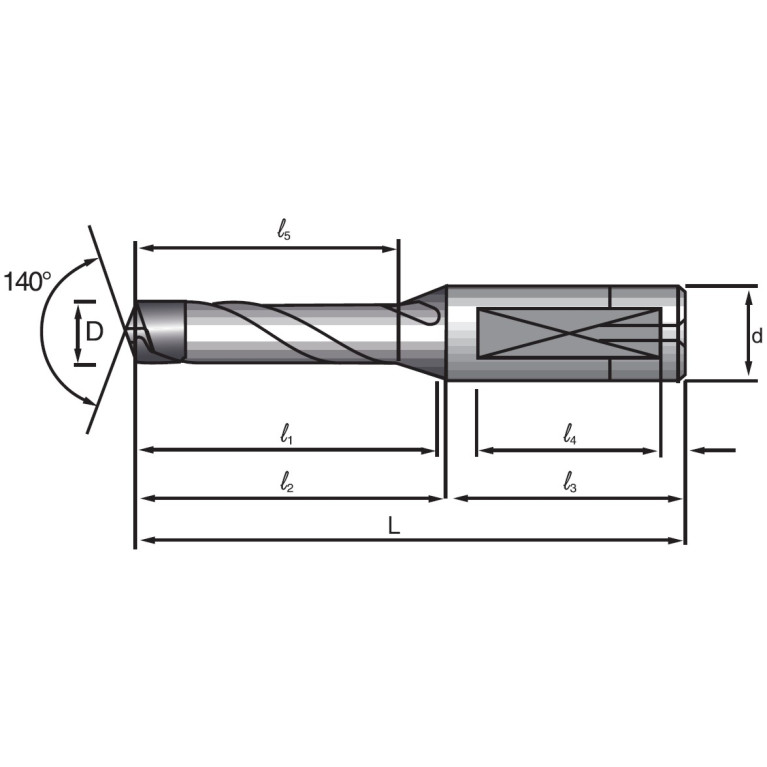

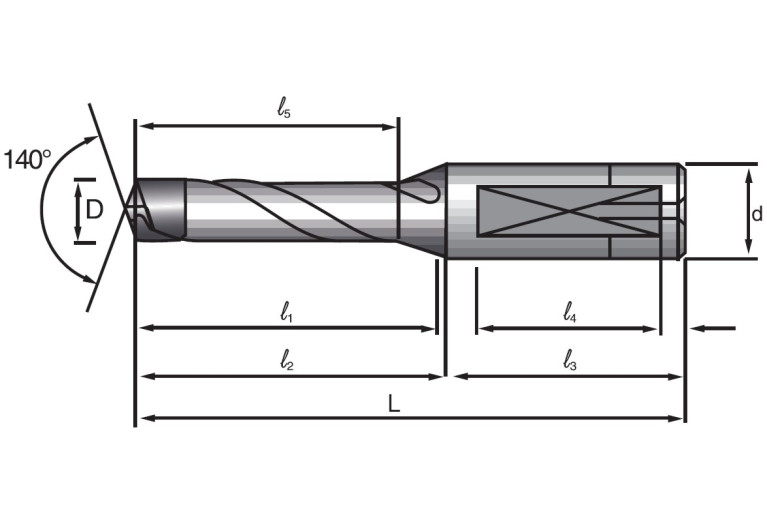

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

22.225 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/9/2021

DIN

ZYL10001035

FamilyProducts

KDS-LAV Series Brazed Carbide-Tipped Drill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

G10E

HAND Cutting direction

R - Right

ID Technical product number

KDS08750LAV

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

142.0876 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR Protruding length

144.0688 mm

LS Shank length

57.15 mm

Name Identifying order number

KDS08750LAV

OAL Overall length

201.2188 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
