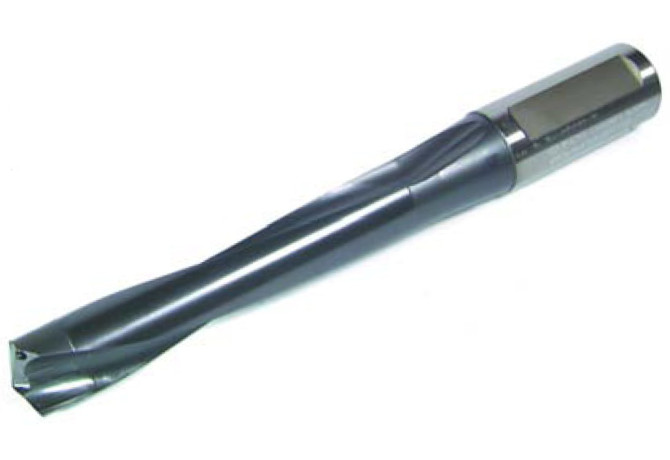

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill KDS07500LAV

KDS07500LAV

KDS07500LAV KDS07500LAV KDS07500LAV

KDS07500LAV

Sumitomo
Артикул: KDS07500LAV
В наличии
В корзину
Описание
Характеристики

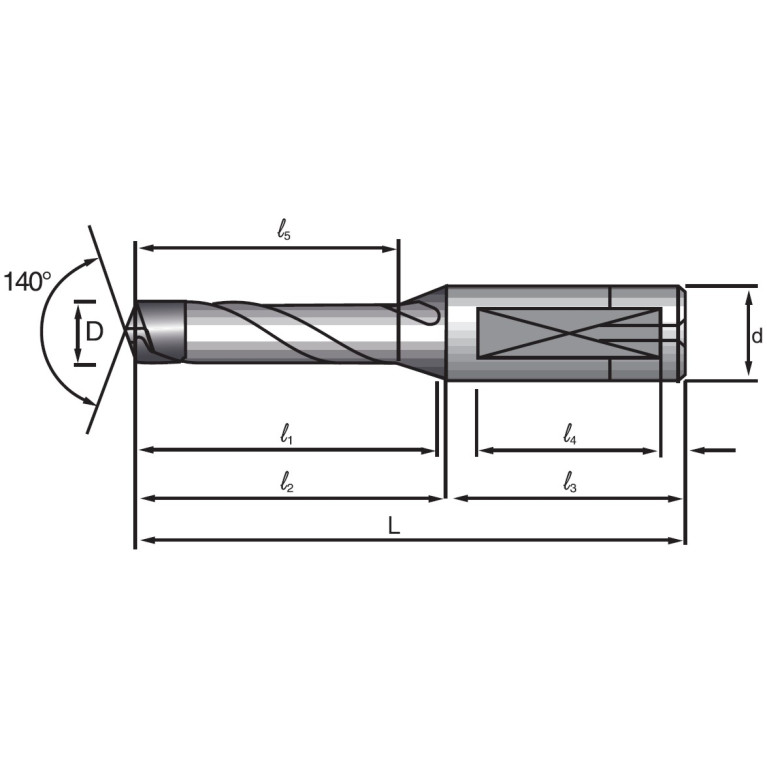

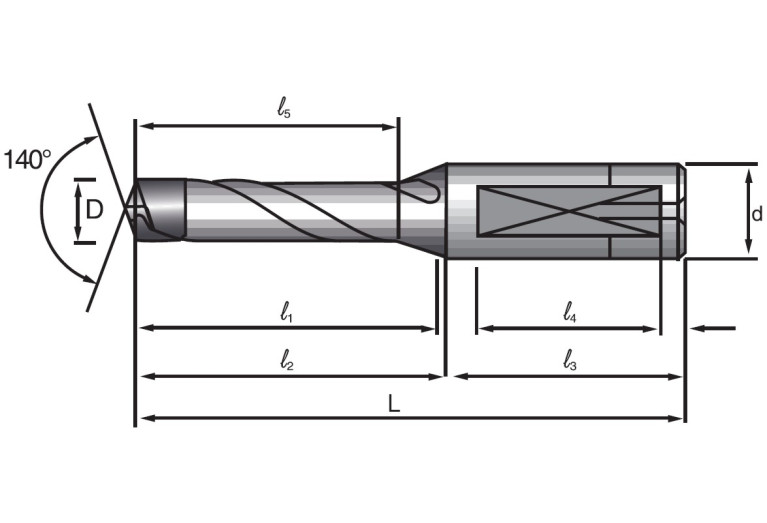

BMC Body material code
B - Steel body with brazed carbide inserts
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
19.05 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/9/2021
DIN
ZYL10001035
FamilyProducts
KDS-LAV Series Brazed Carbide-Tipped Drill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
G10E
HAND Cutting direction
R - Right
ID Technical product number
KDS07500LAV
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
132.1562 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001035
LPR Protruding length
134.1374 mm
LS Shank length
57.15 mm
LU Usable length
106.7562 mm
Name Identifying order number
KDS07500LAV
OAL Overall length
191.2874 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
