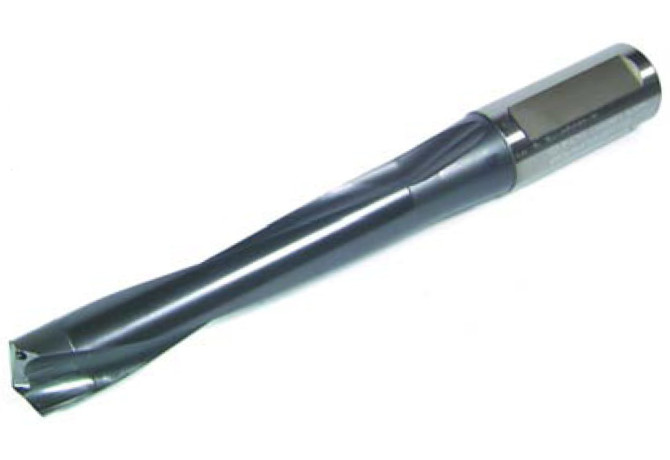

KDS07188LAV

KDS07188LAV KDS07188LAV KDS07188LAV

KDS07188LAV

Sumitomo
Артикул: KDS07188LAV
В наличии
В корзину
Описание
Характеристики
BMC Body material code
B - Steel body with brazed carbide inserts
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
18.2575 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/9/2021
DIN
ZYL07501035
FamilyProducts
KDS-LAV Series Brazed Carbide-Tipped Drill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
G10E
HAND Cutting direction
R - Right
ID Technical product number
KDS07188LAV
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
123.0376 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501035
LPR Protruding length
125.0188 mm
LS Shank length
50.8 mm
LU Usable length
101.6 mm
Name Identifying order number
KDS07188LAV
OAL Overall length
175.8188 mm

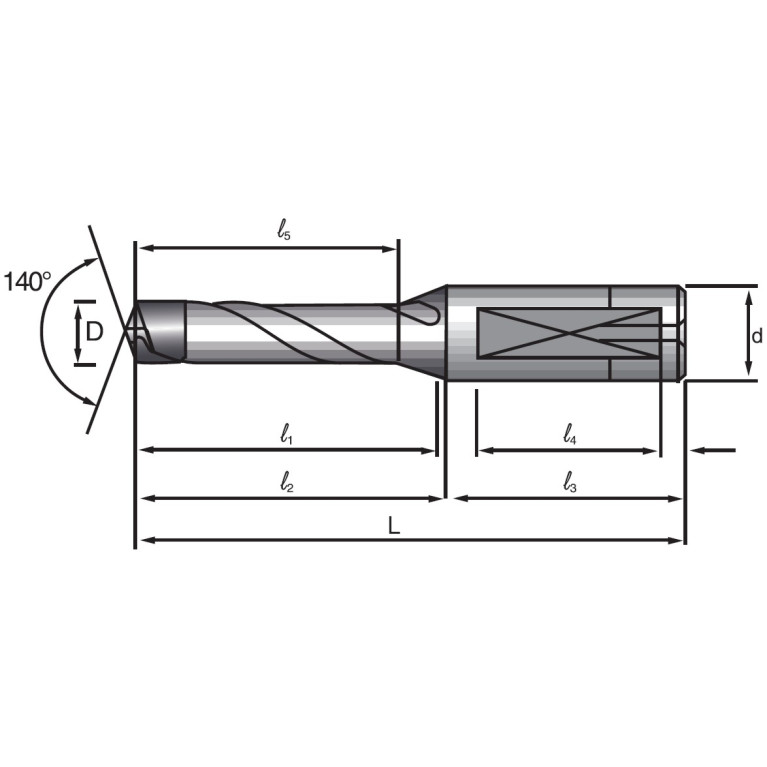

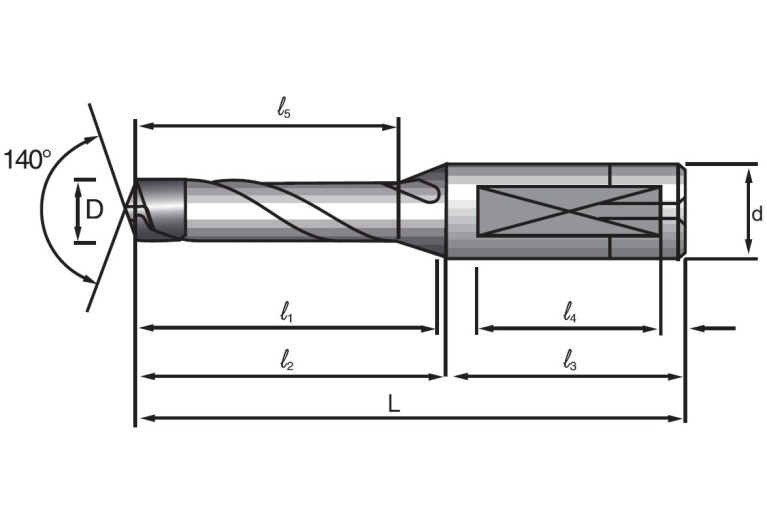

SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
