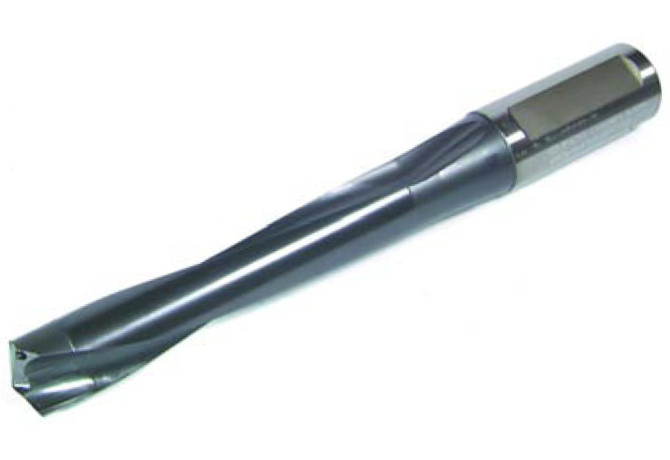

KDS06250LAV

Артикул: KDS06250LAV

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

15.875 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/9/2021

DIN

ZYL07501035

FamilyProducts

KDS-LAV Series Brazed Carbide-Tipped Drill

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

G10E

HAND Cutting direction

R - Right

ID Technical product number

KDS06250LAV

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

112.7252 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07501035

LPR Protruding length

115.0874 mm

LS Shank length

50.8 mm

LU Usable length

90.8812 mm

Name Identifying order number

KDS06250LAV

OAL Overall length

165.8874 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
