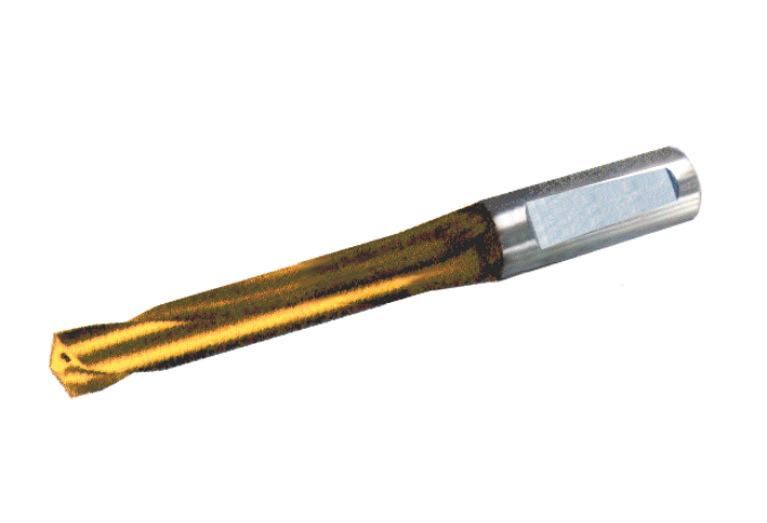

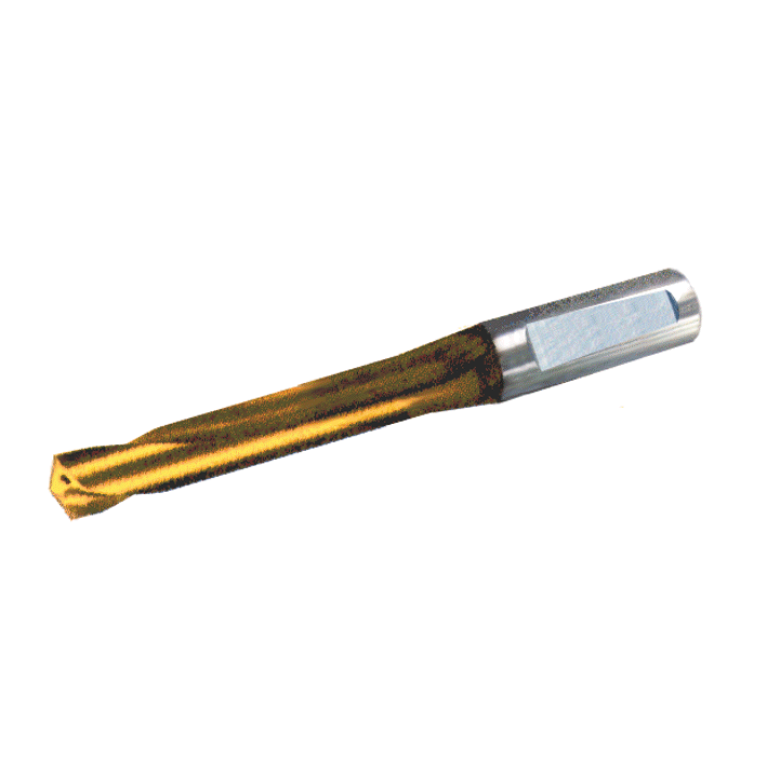

KDS 393 LBA

Артикул: KDS 393 LBA

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

39.3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2006

DIN

ZYL04001315

FamilyProducts

Sumitomo MULTI-DRILL KDS...BA for steel sheets

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

GAC30

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

KDS 393 LBA

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

248 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04001315

LS Shank length

70 mm

LU Usable length

198 mm

Name Identifying order number

KDS 393 LBA

NOF Flute count

OAL Overall length

325.2 mm

PL Point length

5.2 mm

SIG Point angle 1st step

150 Degree

Working process

BVB - Drilling
