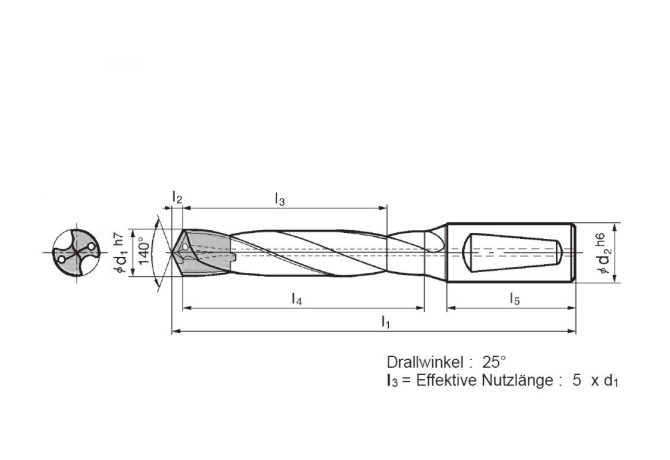

KDS 229 LSFX

Артикул: KDS 229 LSFX

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

22.9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2006

DIN

ZYL02501315

FamilyProducts

Sumitomo MULTI-DRILL head type for stainless steel

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

K2C

GRDPRIO Standard designation of the grade main application

HC-M20

HAND Cutting direction

R - Right

ID Technical product number

KDS 229 LSFX

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

129 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501315

LS Shank length

56 mm

LU Usable length

117 mm

Name Identifying order number

KDS 229 LSFX

OAL Overall length

214.2 mm

PL Point length

4.2 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
