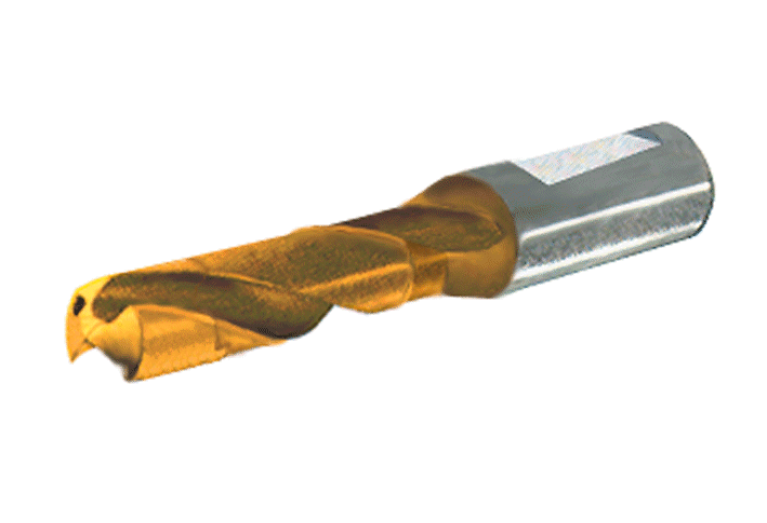

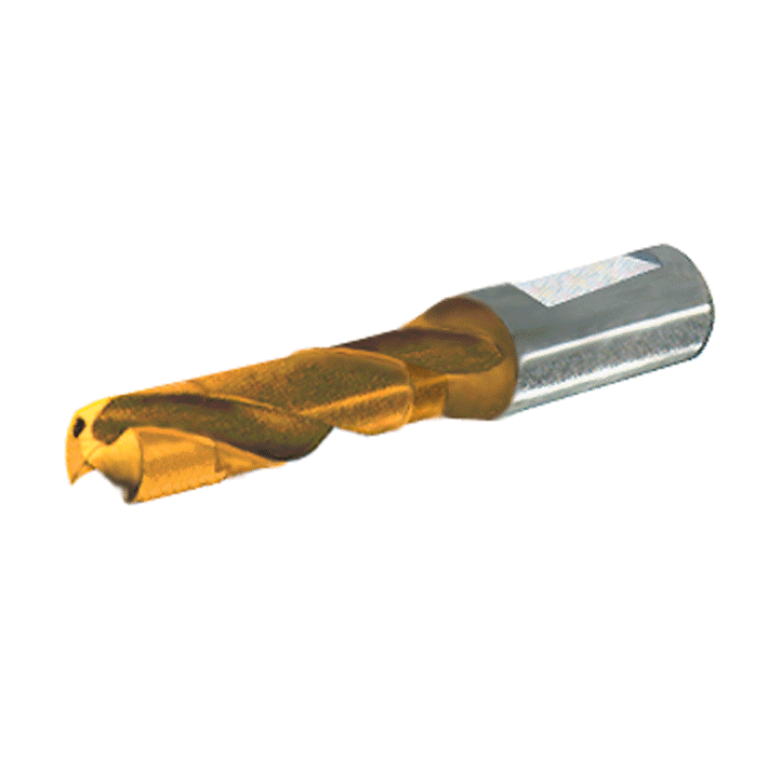

KDS 090 MPFX

Артикул: KDS 090 MPF X

В наличии

В корзину

Описание

Характеристики

BMC Body material code

B - Steel body with brazed carbide inserts

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

9 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/1/2007

DIN

ZYL01601315

FamilyProducts

Sumitomo MULTI-DRILL head type for steels and GGG

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

GAC30

GRDPRIO Standard designation of the grade main application

HC-P30

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

KDS 090 MPF X

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

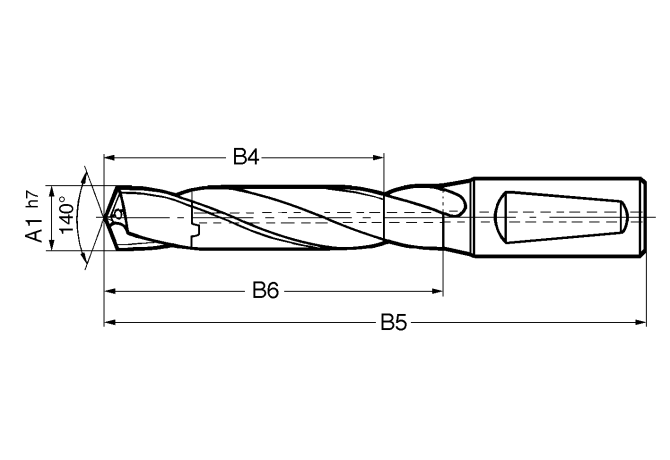

LCF Length chip flute

38.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601315

LPR Protruding length

49 mm

LU Usable length

33.8 mm

Name Identifying order number

KDS 090 MPFX

NOF Flute count

OAL Overall length

96.8 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
