Главная Каталог продукции Toolunited 13 302-01 - Twist Drill HSD 082-109-082 AG10

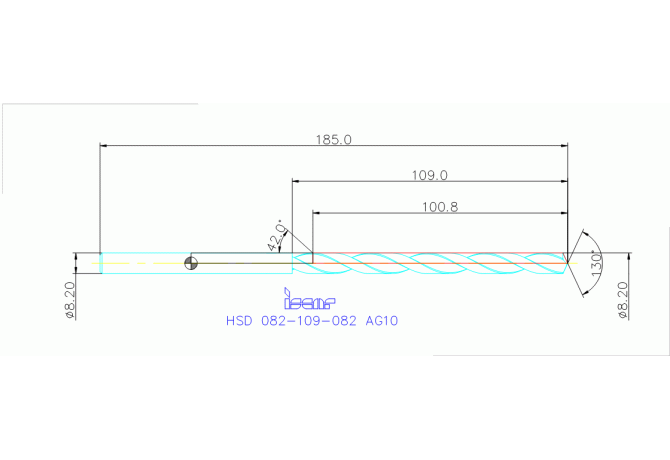

HSD 082-109-082 AG10

Артикул: 3220655

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL00820105

FamilyProducts

HSD 082-109-082 AG10, HSD-AG10 (H.S.S.)

FHA Flute helix angle

42 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

0 mm

GRDMFG Grade manufacturers designation

HAND Cutting direction

R - Right

ID Technical product number

3220655

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

109 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0082

LOC-03 DCONMS Diameter

8.2 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00820105

LU Usable length

100.8 mm

Name Identifying order number

HSD 082-109-082 AG10

NOF Flute count

OAL Overall length

185 mm

SIG Point angle 1st step

130 Degree

Working process

BVB - Drilling
