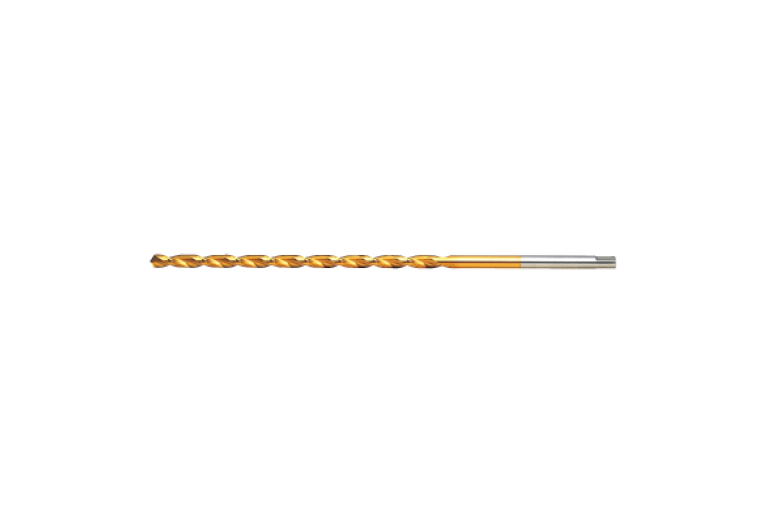

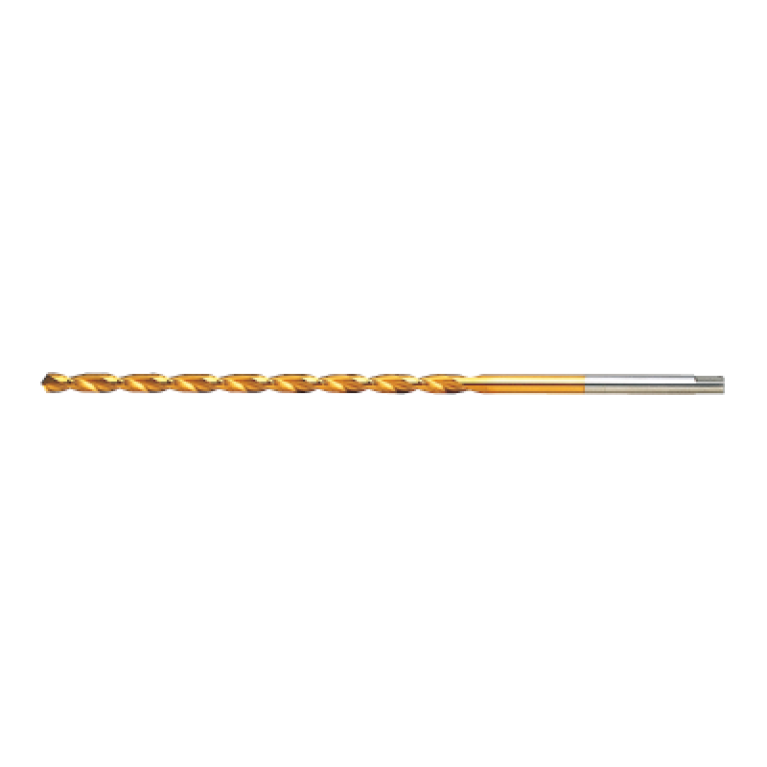

Главная Каталог продукции Toolunited 13 302-01 - Twist Drill GWSLD0300A200

GWSLD0300A200

Артикул: 10281222

В наличии

В корзину

Описание

Характеристики

BMC Body material code

L - Light alloy

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00302005

FamilyProducts

TiN, Extra long

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10281222

Interface codes

J6 / J61

ISO

ZYL20F3000$$$$

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

125.9 mm

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 ISO

ZYL20F3000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00302005

LPR Protruding length

127.9 mm

LS Shank length

75 mm

LU Usable length

119.9 mm

Name Identifying order number

GWSLD0300A200

NOF Flute count

OAL Overall length

200.9 mm

PL Point length

0.9 mm

SIG Point angle 1st step

118 Degree

Working process

BVB - Drilling
