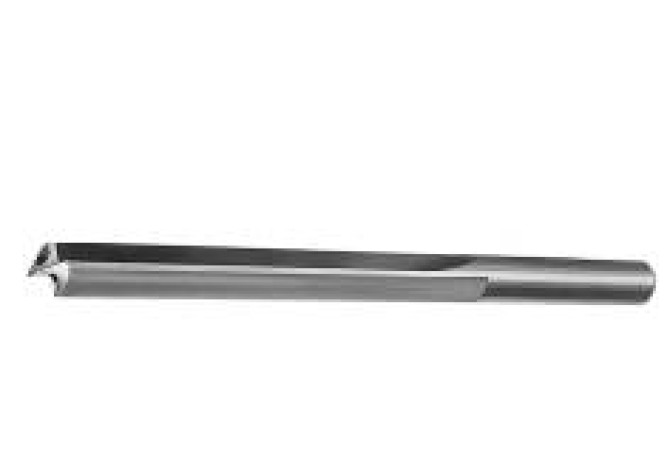

FDC0650S

Артикул: FDC0650S

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

6.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

5/30/2010

DIN

ZYL00700105

FamilyProducts

FD jet drill for cast iron and aluminium alloys

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

FDC

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

52 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00700105

LS Shank length

40 mm

LU Usable length

52 mm

Materials

K,N

Name Identifying order number

FDC0650S

NOF Flute count

OAL Overall length

95 mm

SIG Point angle 1st step

135 Degree

Working process

BVB - Drilling
